Schema CODATA-TDWG-BioCol_1.13.xsd


Elements  Complex types  Simple types
ContactFk  AddressType  AltText
FullDataSet  AgentType  Epithet
GeoEcologicalClassification  AltitudeType  Genus
GeologicalRecord  AspectType  InstitutionCode
PreferredIdentificationFlag  BacteriologicalNameType  LongTermName
Rocktype  BotanicalNameType  OpenID
CommsNumbersType  Rank
ContactType  Role
CountryType  ShortTermName
DateType  SystemID
DurationType  VernacularNames
HigherTaxonType
IdentificationType
ImageColoursType
ImageFormatType
ImageType
IPRType
LookupTermType
MeasurementType
NamedCollectionType
OrganisationType
PersonNameType
RefCatNumberType
ReferenceType
SourceType
StratigraphyType
SubstrateType
TaxonIdentifiedType
UnitDataSetRelationsType
ZoologicalNameType


element ContactFk
diagram
type xs:string

element FullDataSet
diagram
children StandardVersion Supplier Datasource DatasetAnnotation ComponentDataSet
annotation
documentation
Root element: FullDataSet refers to one or more ComponentDataSets linked by a common supplier and source.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/StandardVersion
diagram
type xs:string
annotation
documentation
Version of the CODATA/TDWG Standard for Biological Collection Data
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/Supplier
diagram
type AgentType
children SupplierText InstitutionCode URL Contact
annotation
documentation
Metadata - Organisation or individual providing the data file.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Markus Doering</Author>
	<Date> Feb 2002</Date>
	<Comment>changed to newly introduced AgentType</Comment>
</Changed>

element FullDataSet/Datasource
diagram
children Dbsource Dbserver Dbwebaddress Dbdatadate Dbcurrentdate Dbexpirydate Dbtermsofuse
annotation
documentation
Notes: This is an element directly taken from the DTD for the Integrated Taxonomic Information System, Canadian node (ITIS*ca) at: http://sis.agr.gc.ca/itis/ which was provided by Derek Munro.
There, the root element contains two elements, taxon and datasource.
The taxon branch is not very useful for us; however, we might consider using the datasource element as they do.
Origin, access and ownership of computerised data sources
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>

element FullDataSet/Datasource/Dbsource
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>ITIS*ca draft metadata</ExistingStandards>

element FullDataSet/Datasource/Dbserver
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>ITIS*ca draft metadata</ExistingStandards>

element FullDataSet/Datasource/Dbwebaddress
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>ITIS*ca draft metadata</ExistingStandards>

element FullDataSet/Datasource/Dbdatadate
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>ITIS*ca draft metadata</ExistingStandards>

element FullDataSet/Datasource/Dbcurrentdate
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>ITIS*ca draft metadata</ExistingStandards>

element FullDataSet/Datasource/Dbexpirydate
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>ITIS*ca draft metadata</ExistingStandards>

element FullDataSet/Datasource/Dbtermsofuse
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Derek Munro</Author>
	<Date>Sept 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>ITIS*ca draft metadata</ExistingStandards>

element FullDataSet/DatasetAnnotation
diagram
type xs:string
annotation
documentation
Text description of the FullDataSet as represented in a database version
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet
diagram
children DatasetOrCollectinOrSubcollectionName Originator OwnerOrCustodian IPR NoURecsInResSet NoURecsInDb DateExtracted DatabaseVersion UnitDataset
annotation
documentation
A FullDataSet is composed of one or more ComponentDataSets each related to their own metadata including Originator, GatheringEvents and Unit Data
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>NBN: Survey</ExistingStandards>

element FullDataSet/ComponentDataSet/DatasetOrCollectinOrSubcollectionName
diagram
type xs:string
annotation
documentation
CC. The ComponentDataset may have a free text attribute defining its name
Could be treated as an attribute of ComponentDataSet
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/Originator
diagram
type AgentType
children SupplierText InstitutionCode URL Contact
annotation
documentation
Uses the same structure as other contact elements (e.g. owner & supplier) therefore could be generalised via use of a Type Attribute(depositor, other bot. garden source, Originating Institution)
CC. The orignator of the ComponentDataSet includes Elements for descriptive text, Organisation or individual name, address, URL and contact name
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/OwnerOrCustodian
diagram
type AgentType
children SupplierText InstitutionCode URL Contact
annotation
documentation
Uses the same structure as other contact elements (e.g. originator & supplier) therefore could be generalised via use of a Type Attribute
Individual or organisation with 'ownership' of a dataset
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/IPR
diagram
type IPRType
children Ackn Disclaim UsageRestr Purpose Logo
annotation
documentation
Element referring to the Intellectual Property Rights apertaining to a dataset or unit data
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/NoURecsInResSet
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/NoURecsInDb
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/DateExtracted
diagram
type xs:string
annotation
documentation
Date this dataset was extracted from a parent database or databases
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/DatabaseVersion
diagram
type xs:string
annotation
documentation
Version control data for identifying source and version of a database
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

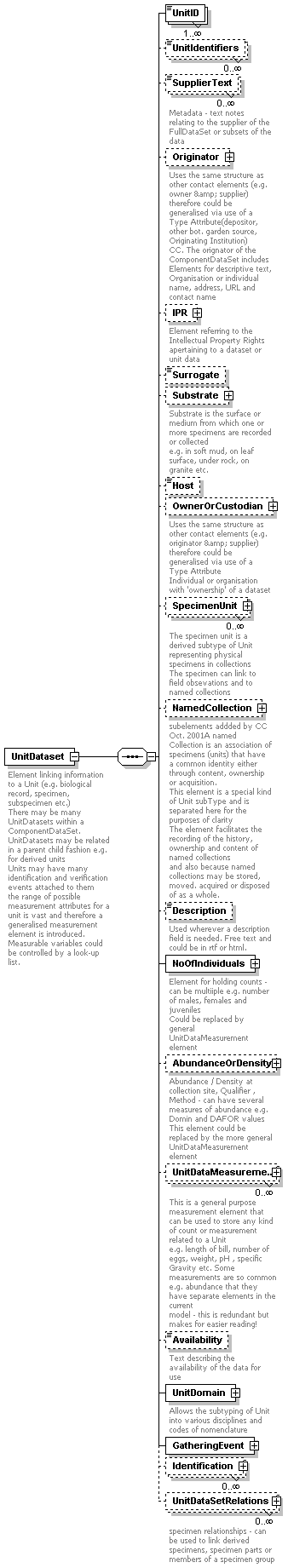

element FullDataSet/ComponentDataSet/UnitDataset
diagram
children UnitID UnitIdentifiers SupplierText Originator IPR Surrogate Substrate Host OwnerOrCustodian SpecimenUnit NamedCollection Description NoOfIndividuals AbundanceOrDensity UnitDataMeasurement Availability UnitDomain GatheringEvent Identification UnitDataSetRelations
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
ChangedBy  xs:string
ChangedDate  xs:string
annotation
documentation
Element linking information to a Unit (e.g. biological record, specimen, subspecimen etc.)
There may be many UnitDatasets within a ComponentDataSet. UnitDatasets may be related in a parent child fashion e.g. for derived units
Units may have many identification and verification events attached to them
the range of possible measurement attributes for a unit is vast and therefore a generalised measurement element is introduced.
Measurable variables could be controlled by a look-up list.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1  </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>Taxon48: Unit (Gathering Unit) - see also Secimen Unit in this model (=Derived Unit)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/UnitIdentifiers
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
IdentifierType  xs:string
annotation
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>includes HISPID4: cid
NBN: specimen_number</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SupplierText
diagram
type AltText
annotation
documentation
Metadata - text notes relating to the supplier of the FullDataSet or subsets of the data
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/Originator
diagram
type AgentType
children SupplierText InstitutionCode URL Contact
annotation
documentation
Uses the same structure as other contact elements (e.g. owner & supplier) therefore could be generalised via use of a Type Attribute(depositor, other bot. garden source, Originating Institution)
CC. The orignator of the ComponentDataSet includes Elements for descriptive text, Organisation or individual name, address, URL and contact name
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/IPR
diagram
type IPRType
children Ackn Disclaim UsageRestr Purpose Logo
annotation
documentation
Element referring to the Intellectual Property Rights apertaining to a dataset or unit data
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/Surrogate
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/Substrate
diagram
type SubstrateType
children SoilType SedimentType AltText
annotation
documentation
Substrate is the surface or medium from which one or more specimens are recorded or collected
e.g. in soft mud, on leaf surface, under rock, on granite etc.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID4: sub</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/Host
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/OwnerOrCustodian
diagram
type AgentType
children SupplierText InstitutionCode URL Contact
annotation
documentation
Uses the same structure as other contact elements (e.g. originator & supplier) therefore could be generalised via use of a Type Attribute
Individual or organisation with 'ownership' of a dataset
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

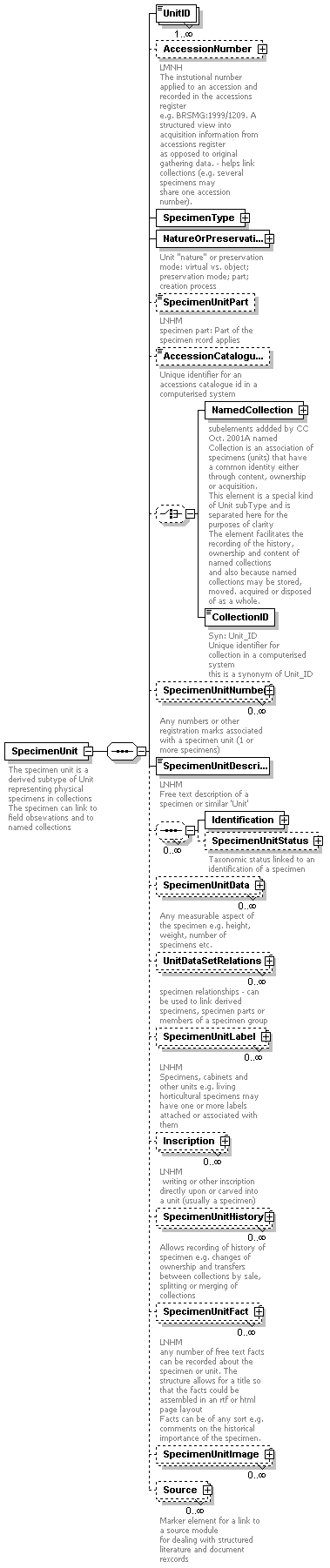

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit
diagram
children UnitID AccessionNumber SpecimenType NatureOrPreservationMode SpecimenUnitPart AccessionCatalogueID NamedCollection CollectionID SpecimenUnitNumber SpecimenUnitDescription Identification SpecimenUnitStatus SpecimenUnitData UnitDataSetRelations SpecimenUnitLabel Inscription SpecimenUnitHistory SpecimenUnitFact SpecimenUnitImage Source
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
The specimen unit is a derived subtype of Unit representing physical specimens in collections
The specimen can link to field obsevations and to named collections
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber
diagram
children AccessionDate AcquisitionDate AltText PersonName OrganisationName Comment Source
attributes
Name  Type  Use  Default  Fixed  Annotation
Acquisitiontype  xs:string
annotation
documentation
LMNH
The instutional number applied to an accession and recorded in the accessions register
e.g. BRSMG:1999/1209. A structured view into acquisition information from accessions register
as opposed to original gathering data. - helps link collections (e.g. several specimens may
share one accession number).
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>Taxon48 AccCode_Pk</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AccessionDate
diagram
children Date
annotation
documentation
The date on which an accession was recorded in the accessions register ( not the date of acquisition)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>Taxon48: AccDate</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AccessionDate/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AcquisitionDate
diagram
children Date
annotation
documentation
The date when specimens or collections were acquired by the institution
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AcquisitionDate/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/OrganisationName
diagram
type xs:string
annotation
documentation
Full organisation name e.g. Taxonomic Database Working Group
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType
diagram
children ShortTermName LongTermName Description AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
SpecimenTypeID  xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType/ShortTermName
diagram
type ShortTermName
annotation
documentation
ShortTernName is a code or shortened version of a term that might be used in a database or lookup table
e.g. HOLO for Holotype
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType/LongTermName
diagram
type LongTermName
annotation
documentation
LongTermname is the full term that might appear in a lookup table e.g. in a list of types: Holotype
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType/Description
diagram
type xs:string
annotation
documentation
Used wherever a description field is needed. Free text and could be in rtf or html.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/NatureOrPreservationMode
diagram
children LookupTerm AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
PreservationModeID  xs:string
annotation
documentation
Unit "nature" or preservation mode: virtual vs. object; preservation mode; part; creation process
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/NatureOrPreservationMode/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/NatureOrPreservationMode/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitPart
diagram
type xs:string
annotation
documentation
LNHM
specimen part: Part of the specimen rcord applies
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionCatalogueID
diagram
type OpenID
annotation
documentation
Unique identifier for an accessions catalogue id in a computerised system
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/NamedCollection
diagram
type NamedCollectionType
children CollectionID AccessionCatalogueID CollectionName Description AssociatedName Source
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
subelements addded by CC Oct. 2001A named Collection is an association of specimens (units) that have a common identity either through content, ownership or acquisition.
This element is a special kind of Unit subType and is separated here for the purposes of clarity
The element facilitates the recording of the history, ownership and content of named collections
and also because named collections may be stored, moved. acquired or disposed of as a whole.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/CollectionID
diagram
type OpenID
annotation
documentation
Syn: Unit_ID
Unique identifier for collection in a computerised system
this is a synonym of Unit_ID
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitNumber
diagram
children SpecimenUnitNumberID DistinguishingNumber Source
attributes
Name  Type  Use  Default  Fixed  Annotation
PreferredFlag  xs:NMTOKEN
annotation
documentation
Any numbers or other registration marks associated with a specimen unit (1 or more specimens)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitNumber/SpecimenUnitNumberID
diagram
type xs:string
annotation
documentation
LNHM
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitNumber/DistinguishingNumber
diagram
type xs:string
annotation
documentation
Text for number or other registration mark applied to a specimen or group of specimens e.g from registration book, collectors note book, auction catalogue, batch number etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitNumber/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitDescription
diagram
type xs:string
annotation
documentation
LNHM
Free text description of a specimen or similar 'Unit'
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Identification
diagram
type IdentificationType
children IdentificationEvent TaxonIdentified IdentificationHistory
attributes
Name  Type  Use  Default  Fixed  Annotation
PreferredIdentificationFlag  xs:NMTOKEN  required
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus
diagram
children UnitStatusID UnitID Type SpecimenUnitStatusSrc
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
Taxonomic status linked to an identification of a specimen

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/UnitStatusID
diagram
type SystemID

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type
diagram
children TypeStatus Basionym Source
attributes
Name  Type  Use  Default  Fixed  Annotation
BasionymOrder  xs:NMTOKEN
annotation
documentation
made qualifier an attribute of status
- introduced qualifier to indicate preference or sort order of basionyms
Composite element that links type status, a qualifying statement, original name and pertinent published references
Making Type a repeatable element with a qualifier for sort order e.g. most recent, second most recent etc.
covers multiple elements in HISPID (e.g. basnam1, basnam2, basnam3)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/TypeStatus
diagram
children AltText Source LookupTerm
attributes
Name  Type  Use  Default  Fixed  Annotation
TypeQualifier  xs:NMTOKEN  required
annotation
documentation
The presumed nomenclatural status of specimens regarded as types -
Note that Type Qualifier has been moved to an enumerated attribute of TypeStatus
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>includes HISPID4: tsta and tql  </ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/TypeStatus/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/TypeStatus/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/TypeStatus/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym
diagram
children AltText BotanicalName BacteriologicalName ZoologicalName Source
annotation
documentation
Baionym refers to the original name associated with a type specimen where the name has subsequently been revised especially where this has arisen from a change of rank
the option here is to use plain name text or a fully atomised model for name parts.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: basnam  / TLR</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/BotanicalName
diagram
type BotanicalNameType
children HigherTaxon NameText NamedHybridFlag Genus FirstEpithet SpeciesQualifier SecondEpithet Rank NameAuthorCitation BasionymAuthorTeam CombinationAuthorTeam ExAuthorTeam VernacularNames CultivatedPlantNameElements MycologicalNameElements LichenNameElements NameComments

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/BacteriologicalName
diagram
type BacteriologicalNameType
children HigherTaxon NameText NameComments

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/ZoologicalName
diagram
type ZoologicalNameType
children HigherTaxon NameText Genus FirstEpithet SecondEpithet Rank ZoologicalNameAuthorTeam ZoologicalNameYear VernacularNames NameComments

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/SpecimenUnitStatusSrc
diagram
children UnitStatusID Source
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
SpecimenStatusSourceKey  xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/SpecimenUnitStatusSrc/UnitStatusID
diagram
type SystemID

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/SpecimenUnitStatusSrc/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitData
diagram
children Measurement
attributes
Name  Type  Use  Default  Fixed  Annotation
SpecimenUnitDataID  xs:string
annotation
documentation
Any measurable aspect of the specimen e.g. height, weight, number of specimens etc.

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitData/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/UnitDataSetRelations
diagram
type UnitDataSetRelationsType
children UnitRelationship Comment Date
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
UnitID1  xs:string
UnitID2  xs:string
annotation
documentation
specimen relationships - can be used to link derived specimens, specimen parts or members of a specimen group
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel
diagram
children SpecimenUnitLabelID UnitID PositionOnObject LabelSummary Source
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
LNHM
Specimens, cabinets and other units e.g. living horticultural specimens may have one or more labels attached or associated with them
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel/SpecimenUnitLabelID
diagram
type xs:string
annotation
documentation
LNHM
Unique identifier within a database
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel/PositionOnObject
diagram
type xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel/LabelSummary
diagram
type xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Inscription
diagram
children InscriptionID UnitID InscriptionType InscriptionText
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
LNHM
 writing or other inscription directly upon or carved into a unit (usually a specimen)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Inscription/InscriptionID
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
Type  xs:NMTOKEN  required
annotation
documentation
Unique identifier within a database
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Inscription/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Inscription/InscriptionType
diagram
type xs:string
annotation
documentation
LNHM
Type of inscription
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Inscription/InscriptionText
diagram
type xs:string
annotation
documentation
Text transcription of an inscription
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitHistory
diagram
children UnitID PreviousCollectionName Date Comment
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
Allows recording of history of specimen e.g. changes of ownership and transfers between collections by sale, splitting or merging of collections
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitHistory/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitHistory/PreviousCollectionName
diagram
type xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitHistory/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
documentation
Date has a three part structure - two elements and an attribute
VagueDateBegin = First date of a range or date for a single date
VagueDateEnd = last date in a range
DateType attribute can be enumerated to allow for various date formats (e.g. dd/mm/yyyy or to allow a parser to interpret terms such as summer 69 or 1974 etc)
Note terms such as summer would be interpretted by standard begin and end dates.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: vaguedatestart, vaguedateend and vaguedatetype</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitHistory/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact
diagram
children SpecimenUnitFactID Title Comment Date Source
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
ChangedBy  xs:string
ChangedDate  xs:string
SystemSuppliedData  xs:NMTOKEN    No
FactType  xs:string
annotation
documentation
LNHM
any number of free text facts can be recorded about the specimen or unit. The structure allows for a title so that the facts could be assembled in an rtf or html page layout
Facts can be of any sort e.g. comments on the historical importance of the specimen.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact/SpecimenUnitFactID
diagram
type xs:string
annotation
documentation
LNHM
Unique identifier within a database
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact/Title
diagram
type xs:string

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
documentation
Date has a three part structure - two elements and an attribute
VagueDateBegin = First date of a range or date for a single date
VagueDateEnd = last date in a range
DateType attribute can be enumerated to allow for various date formats (e.g. dd/mm/yyyy or to allow a parser to interpret terms such as summer 69 or 1974 etc)
Note terms such as summer would be interpretted by standard begin and end dates.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: vaguedatestart, vaguedateend and vaguedatetype</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitImage
diagram
children ImageContext Image

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitImage/ImageContext
diagram
type xs:string
annotation
documentation
The context of the image in relation to the specimen or other types of derived unit - could be many e.g. original valid publication image, front view of lectotype etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

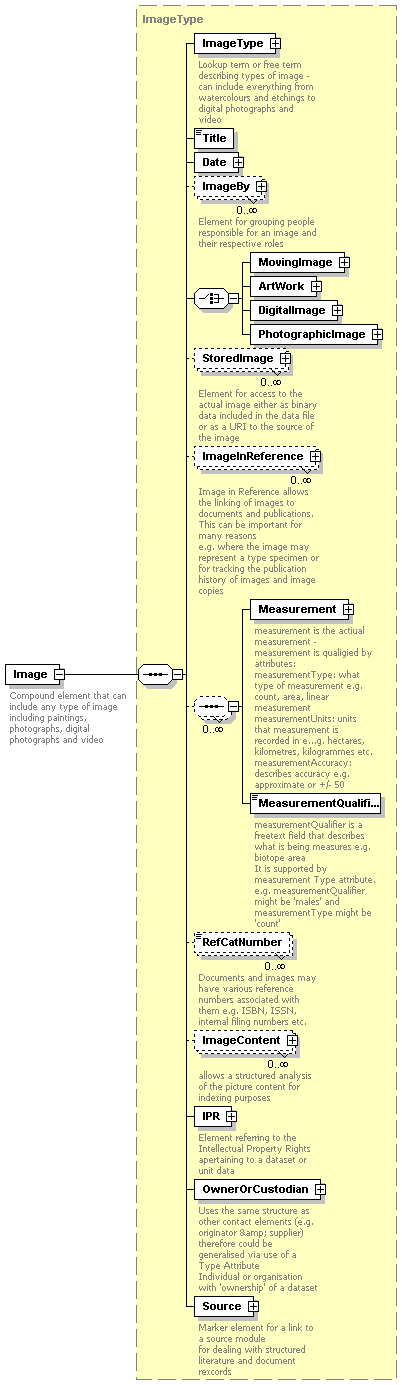

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitImage/Image
diagram
type ImageType
children ImageType Title Date ImageBy MovingImage ArtWork DigitalImage PhotographicImage StoredImage ImageInReference Measurement MeasurementQualifier RefCatNumber ImageContent IPR OwnerOrCustodian Source
attributes
Name  Type  Use  Default  Fixed  Annotation
Original  xs:NMTOKEN
annotation
documentation
Compound element that can include any type of image including paintings, photographs, digital photographs and video
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Image</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/NamedCollection
diagram
type NamedCollectionType
children CollectionID AccessionCatalogueID CollectionName Description AssociatedName Source
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
subelements addded by CC Oct. 2001A named Collection is an association of specimens (units) that have a common identity either through content, ownership or acquisition.
This element is a special kind of Unit subType and is separated here for the purposes of clarity
The element facilitates the recording of the history, ownership and content of named collections
and also because named collections may be stored, moved. acquired or disposed of as a whole.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/Description
diagram
type xs:string
annotation
documentation
Used wherever a description field is needed. Free text and could be in rtf or html.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/NoOfIndividuals
diagram
children Measurement Comment
annotation
documentation
Element for holding counts - can be multiiple e.g. number of males, females and juveniles
Could be replaced by general UnitDataMeasurement element
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Cc</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/NoOfIndividuals/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/NoOfIndividuals/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/AbundanceOrDensity
diagram
children AltText Measurement Comment
annotation
documentation
Abundance / Density at collection site, Qualifier , Method - can have several measures of abundance e.g. Domin and DAFOR values
This element could be replaced by the more general UnitDataMeasurement element
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/AbundanceOrDensity/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/AbundanceOrDensity/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/AbundanceOrDensity/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDataMeasurement
diagram
children Measurement
attributes
Name  Type  Use  Default  Fixed  Annotation
UnitDataMeasurementID  xs:string
annotation
documentation
This is a general purpose measurement element that can be used to store any kind of count or measurement related to a Unit
e.g. length of bill, number of eggs, weight, pH , specific Gravity etc. Some measurements are so common e.g. abundance that they have separate elements in the current
model - this is redundant but makes for easier reading!
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Taxon_Data</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDataMeasurement/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/Availability
diagram
type xs:string
annotation
documentation
Text describing the availability of the data for use
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain
diagram
children GeologicalSpecimen PalaeontologicalSpecimen ZoologicalSpecimen BotanicalUnit BotanicalGardenUnit MycologicalUnit CultureCollection
annotation
documentation
Allows the subtyping of Unit into various disciplines and codes of nomenclature
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/GeologicalSpecimen
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/PalaeontologicalSpecimen
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/ZoologicalSpecimen
diagram
children ZoologyAge ZoologySex ZoologyPhase
annotation
documentation
Unit subtype allowing the recording of zoological attributes
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/ZoologicalSpecimen/ZoologyAge
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/ZoologicalSpecimen/ZoologySex
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/ZoologicalSpecimen/ZoologyPhase
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/BotanicalUnit
diagram
children UnitID
annotation
documentation
Check for HISPID fields of specific botanical nature.
Unit subtype allowing the recording of botanical attributes
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/BotanicalUnit/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/BotanicalGardenUnit
diagram
children UnitID Hardiness
annotation
documentation
Quite a few elements from ITF go here. Unit subtype allowing the recording of horticultural attributes
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/BotanicalGardenUnit/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/BotanicalGardenUnit/Hardiness
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/MycologicalUnit
diagram
children LichenMorphotype MycologicalLiveStage MycologicalSexualStage

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/MycologicalUnit/LichenMorphotype
diagram
type xs:string
annotation
documentation
Name of algal or cyanobacterial component of lichen
appInfo
<Created>
	<Author>Paul Kirk (in email)</Author>
	<Date/>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/MycologicalUnit/MycologicalLiveStage
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Paul Kirk (in email)</Author>
	<Date/>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/MycologicalUnit/MycologicalSexualStage
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Paul Kirk (in email)</Author>
	<Date/>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection
diagram
children UnitID CultureName GrowthConditions CultureMedium Aerobicity Temperature Applications Source Hazard
annotation
documentation
Unit subtype allowing the recording of microbial and similar culture method attributes
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/UnitID
diagram
type OpenID
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Unit_ID  / NBN: Sample_KeyUnit key or Identifying number - can be multiple</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/CultureName
diagram
type xs:string
annotation
documentation
Reference or trade name for a microbial culture
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/GrowthConditions
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/CultureMedium
diagram
type xs:string
annotation
documentation
The growth medium for a microbial or similar culture e.g. agar
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/Aerobicity
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/Temperature
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
TempType  xs:NMTOKEN
annotation
documentation
Preferably a number - attribute gives temperature scale used
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/Applications
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/Hazard
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent
diagram
children Project GatheringAgent GatheringCode GatheringDateTime GatheringSite GatheringEventData Substrate Aspect Exposure Slope Altitude
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project
diagram
children ProjPk ParProjFk ProjTitle ProjTitle2 PlatformNm Duration DateFrom DateTo ProjAckn ProjTxt Contact
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>Taxon48: Project Proj_Pk</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/ProjPk
diagram
type xs:string
annotation
documentation
Unique identifier in database
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48 Proj_Pk</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/ParProjFk
diagram
type xs:string
annotation
documentation
Name or reference to a parent project where expedition is part of a bigger project
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: ParProj_Pk</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/ProjTitle
diagram
type xs:string
annotation
documentation
Main project title
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: ProjTitle</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/ProjTitle2
diagram
type xs:string
annotation
documentation
Project subtitle
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: ProjTitle2</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/PlatformNm
diagram
type xs:string
annotation
documentation
CC. Free text element platform name - refers to the 'platform' from which observations where made e.g. the name of a research vessel or a remote operated vehicle.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: PlatformNm
ASC: PLATFORM-NAM</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/Duration
diagram
type DurationType
attributes
Name  Type  Use  Default  Fixed  Annotation
MeasurementUnits  xs:string
annotation
documentation
measurement of time elapsed - decimal number
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>Taxon48: Duration</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/DateFrom
diagram
children Date
annotation
documentation
Element for recording the starting date in a range
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/DateFrom/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/DateTo
diagram
children Date
annotation
documentation
End date for use in date ranges

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/DateTo/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/ProjAckn
diagram
type xs:string
annotation
documentation
Project funding acknowledgements - free text
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: ProjAckn</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/ProjTxt
diagram
type xs:string
annotation
documentation
Free text description of the project
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: ProjTxt</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/Contact
diagram
type ContactType
children NameID Organisation PersonName AltText Address CommsNumbers
annotation
documentation
CC - should address also be part of contact detail? It could be different from the parent element
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent
diagram
children FirstCollector AdditionalCollector PerCollector
annotation
documentation
Not grouped in HISPID
The person team responsible for collecting or recording. The element contains a FirstCollector,e.g. the principle team member or organisation name,
additional collectors who were part of the team and per Collectors who are other individuals who may have passed specimens or data onto the team.
Probably better structured as a repeatable 'Recorder' element with a Type attribute to allow differentiation e.g. botanists and entomologists working on the same team
and also a preferred flag for the team leader.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>Taxon48: GatheringAgent incl. LegTm1_Fk,LegTmAl_Fk, LegTmPr_Fk/ NBN: Event_Recorder & Sample_Recorder </ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector
diagram
children NameID Organisation PersonName AltText
annotation
documentation
Normally a single person in charge of field book to which records are added or the team leader. May be the person whose collection number is cited.
could be an organisation name where collector not known
Could be handled by uniting all observers in one repeatable element name with an element attribute for first or preferred
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>ABIS, ITF, TLR
NBN: Survey_Recorder & Sample_Recorder  HISPID4: Primary Collector's Name (cnam)
TDWG: Collector</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/NameID
diagram
type OpenID

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/Organisation
diagram
type OrganisationType
children OrganisationName OrgAcronym InstitutionCode
annotation
documentation
Name (elements) for organisations
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/AdditionalCollector
diagram
children NameID PersonName AltText
annotation
documentation
Persons other than the primary collector responsible for collections or observations
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>ITF
Taxon48: Additional Collectors / NBN: Event_Recorder & Sample_Recorder  / HISPID4: Secondary Collectors Name (cnam2)
TDWG:  Collteam</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/AdditionalCollector/NameID
diagram
type OpenID

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/AdditionalCollector/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/AdditionalCollector/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector
diagram
children NameID Organisation PersonName AltText
annotation
documentation
Free text name but could have syntax rules
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: Per Collector (cper) /  NBN: Event_Recorder & Sample_Recorder  (Recorders are distinguished by an attribute: Role)'Per' collector - ie person who collected specimen on behalf of a primary collector</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/NameID
diagram
type OpenID

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/Organisation
diagram
type OrganisationType
children OrganisationName OrgAcronym InstitutionCode
annotation
documentation
Name (elements) for organisations
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringCode
diagram
type xs:string
annotation
documentation
Refers to FirstCollector's number or code for the gathering event
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>NBN: Sample_Reference</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime
diagram
children Calendar DateText DateModifier BeginYear BeginMonth BeginDay EndYear EndMonth EndDay
annotation
documentation
Gives date of the gathering or observation event which can be a range or qualified as a vague date (=HISPID4: cdat)
can also be attached to GatheringEventSample as a means of adding greater precision to specific
groups of observations within a range event (=cdat2 in part)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: cdat
NBN: Survey_Event_Date (3 part vague date)
Taxon48: GDate</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/Calendar
diagram
type xs:string
annotation
documentation
Which calendar a date pertains to e.g. Julian
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/DateText
diagram
type xs:string
annotation
documentation
free text field for imprecise dates that do not conform to standard or parsable types
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>includes HISPID4: texcdat
NBN: Vague date structure covers this and standard dates in one tripartite element</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/DateModifier
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/BeginYear
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/BeginMonth
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/BeginDay
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/EndYear
diagram
type xs:string
annotation
documentation
Year date fragment for last day of a gathering event - probably unnecessary as could easily be parsed from a standard date type
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/EndMonth
diagram
type xs:string
annotation
documentation
month date fragment for last day of a gathering event - probably unnecessary as could easily be parsed from a standard date type
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringDateTime/EndDay
diagram
type xs:string
annotation
documentation
Day date fragment for last day of a gathering event - probably unnecessary as could easily be parsed from a standard date type
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite
diagram
children SiteText Country CountrySubdivision WorldGeographicScheme NamedAreas AreaDetail NearestNamedPlace RelationToNearestNamedPlace Shape FootprintURL SiteCoordinates DepthHeight Altitude Aspect Notes
annotation
documentation
Location at which a Gathering Event takes place
Element contains both geospatial and descriptive elements
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>ABIS, ITF
Taxon48: StatedLoc
HISPID4: Locality (loc) / TDWG: Locality, Stanloc(?) / ASC Locality-Nam</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteText
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Country
diagram
type CountryType
children CountryName Iso2Letter Iso3Letter Language DerivedFlag
annotation
documentation
At least one of Countryname|ISO2|ISO3 should be present but more are allowed
This should be the political country having jurisdiction over the collection site.
Historical country names and water bodies outside the coastal zone can be entered under named area.
CC - There is conflict here between use as an address line (essentially text handy for sorting) and more structured use in collections (GatheringSite) where standardised terms linked to ISO country codes may be desirable
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/CountrySubdivision
diagram
children AreaName AreaCode Source
attributes
Name  Type  Use  Default  Fixed  Annotation
SubdivSrc  xs:NMTOKEN
SubdivLevel  xs:NMTOKEN
AreaType  xs:string
annotation
documentation
Allows specification of more detailed geographic and administrative area contextual info to a collecting locality
Attributes: subdivSrc - enumerated list of standards ( at present just H&B and local) couldbe ref to a lookup list
SubdivLevel: level number where that forms part of a classification (e.g. for HISPID pru and sru)
AreaType: Allows recording of local or national subdiv. level e.g. county, district, state etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>Hollis & Brummitt 1992 & local administrative area standards (e.g. NBN Admin Dictionary)
Includes HISPID4: pru & sru , could also be used for sgu  /  NBN: Admin_Area</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/CountrySubdivision/AreaName
diagram
type xs:string
annotation
documentation
Free text name - hopefully from a standard list
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>Hollis & Brummitt 1992 & local administrative area standards (e.g. NBN Admin Dictionary)
Includes HISPID4: pru & sru  /  NBN: Admin_Area</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/CountrySubdivision/AreaCode
diagram
type xs:string
annotation
documentation
Allows use of abbreviations and codes for area names
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/CountrySubdivision/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/WorldGeographicScheme
diagram
type xs:string
annotation
documentation
Free text - Allows specimens to be allocated to a standard geographic area derived from H&B
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>Hollis & Brummitt 1992
HISPID4: wgs</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas
diagram
children AltText Language NamedArea
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/Language
diagram
type xs:language
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/NamedArea
diagram
children NamedAreaSequenceNo NamedAreaClass NamedAreaName Language DerivedFlag
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/NamedArea/NamedAreaSequenceNo
diagram
type xs:string

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/NamedArea/NamedAreaClass
diagram
type xs:string

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/NamedArea/NamedAreaName
diagram
type xs:string

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/NamedArea/Language
diagram
type xs:language

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/NamedArea/DerivedFlag
diagram
type xs:boolean

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/AreaDetail
diagram
type xs:string
annotation
documentation
Free text description of detail pertaining to the observation, sampling or collection locality
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NearestNamedPlace
diagram
type xs:string
annotation
documentation
The nearest named place to the collection or observation location e.g. on 1:100,000 map or better
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>ABIS, AUSLIG
HISPID4: nnp  / TDWG: Stanloc</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/RelationToNearestNamedPlace
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>WGB</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Shape
diagram
children ShapeCoordinateSystem ShapeCoordinates
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Shape/ShapeCoordinateSystem
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Shape/ShapeCoordinates
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/FootprintURL
diagram
type xs:string
annotation
documentation
URL (e.g. web address) for thelocation of a boundary polygon or centroid spatial reference relating to a gathering site
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates
diagram
children CoordinatesGrid CoordinatesLatLong CoordinatesUTM
attributes
Name  Type  Use  Default  Fixed  Annotation
AppliesTo  xs:NMTOKEN  required
annotation
documentation
Composite element to allow observations to record multiple coordinates or same coordinate in different systems
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesGrid
diagram
children GridCellSystem GridCellCode GridQualifier GridMethod
annotation
documentation
Geospatial coordinates recorded using a grid system
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: Geospatial Coordinates GridSysNam, GridCode, GridPreQual,CrdMsmtMth</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesGrid/GridCellSystem
diagram
type xs:string
annotation
documentation
Grid system name e.g. "GB OS"
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48: GrdSystTxt</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesGrid/GridCellCode
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesGrid/GridQualifier
diagram
type xs:string
annotation
documentation
Grid reference precision qualifier
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Taxon48:GridPrecQual</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesGrid/GridMethod
diagram
type xs:string
annotation
documentation
Coordinates measuring system e.g. GPS, field map reference, inferred map reference
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: geosou (part) / Taxon48: CrdMsmthMtd</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong
diagram
children LatLongDecimal LatLongDMS LatLongMethod Spatialdatum ISOAccuracy AccuracyStatement
annotation
documentation
Element that allows the recording of the latitude and longitude of a recording or collecting position
Could be simplified by converting many of the sub-elements into attributes.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>ABIS, ITF, AUSLIG</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDecimal
diagram
children LatitudeDecimal LongitudeDecimal
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDecimal/LatitudeDecimal
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDecimal/LongitudeDecimal
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS
diagram
children LatDegrees LatMinutes LatSeconds LatNS LongDegrees LongMinutes LongSeconds LongEW
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LatDegrees
diagram
type xs:string
annotation
documentation
Degrees of latitude for collecting site in range 0-90
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: latdeg   / TDWG: LatDegH, LatDegL</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LatMinutes
diagram
type xs:string
annotation
documentation
Minutes within the latitude reading - range 0 - 59
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: latmin / TDWG LatMinH, LatMinL</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LatSeconds
diagram
type xs:string
annotation
documentation
Seconds within the latitude reading range 0 - 59
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: latsec / TDWG:  LatSecH, LatSecL</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LatNS
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: latdir  / TDWG: LatDirHigh, LatDirLow</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LongDegrees
diagram
type xs:string
annotation
documentation
Degrees of longitude of the collecting/recording site - range 0 - 90
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: londeg  / TDWG : LongDegH, LonDegL</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LongMinutes
diagram
type xs:string
annotation
documentation
Minutes in the longitude reading range 0-59
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: lonmin  /  TDWG: LongMinH , LongMinL</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LongSeconds
diagram
type xs:string
annotation
documentation
Seconds in the longitude reading - range 0 - 59
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: lonsec / TDWG: LongSecH , LongSecL</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongDMS/LongEW
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/LatLongMethod
diagram
type xs:string
annotation
documentation
Method of establishing Lat/Long position
appInfo
<ExistingStandards>HISPID4: geosou (part)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/Spatialdatum
diagram
type xs:string
annotation
documentation
mathematical surface on which the mapping and coordinate system used for the geocodes of the record are based
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>AS/NZS4270 spatial transfer standard, SDTS spatial transfer standard</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/ISOAccuracy
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesLatLong/AccuracyStatement
diagram
type xs:string
annotation
documentation
Free text statement of degree of accuracy
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: includes geoacy  TDWG: LatAccurr, LongAccur</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesUTM
diagram
children UTMZone UTMEW UTMNS UTMMethod
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesUTM/UTMZone
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: sqz</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesUTM/UTMEW
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: sge (part)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesUTM/UTMNS
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: sgn (part)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/SiteCoordinates/CoordinatesUTM/UTMMethod
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/DepthHeight
diagram
children DepthHeightLowerValue DepthHeightUpperValue
attributes
Name  Type  Use  Default  Fixed  Annotation
DHType  xs:NMTOKEN
DHMethod  xs:string
DHUnits  xs:NMTOKEN  required
DHAccuracy  xs:NMTOKEN
annotation
documentation
Element that can be used to record both heights above ground and depths below ground or water (Attribute DHType)
method, units of measurement and accuracy are also attributes. DepthHeightLowerValues and DepthHeightUpperValue
give ability to record ranges.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>SDTS, ITRF, AHD, ABIS, ITF
 HISPID4: dep,depacy, depx, depacyx
NBN: Locality_data or Sample_Data (depending on use) with qualifier for measurement type</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/DepthHeight/DepthHeightLowerValue
diagram
type xs:string
annotation
documentation
Lower value of range (ie that nearest to ground datum)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/DepthHeight/DepthHeightUpperValue
diagram
type xs:string
annotation
documentation
Higher value in range (ie. measurement furthest from ground datum)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Altitude
diagram
type AltitudeType
children AltitudeLowerValue AltitudeUpperValue
attributes
Name  Type  Use  Default  Fixed  Annotation
AltitudeMethod  xs:NMTOKEN
AltitudeAccuracy  xs:string
AltitudeUnits  xs:NMTOKEN  required
AltAccSrc  xs:NMTOKEN
annotation
documentation
Element for recording altitude of observation or recording area - ranges expressed by lower and Upper values
Note that method, units, accuracy and source of accuracy are attributes which may be enumerated
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>ABIS, ITF, SDTS, IRTF, AHD71
HISPID4: alt ,altacy, altx, altxcy,altdet,altsou / TDWG: ElevationL, Elevelaccur, ElevationH,ElevHAccur / NBN variables recorded in Location_Data using qualifier and accuracy attributes</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Aspect
diagram
type AspectType
children AltText CompassDegrees
attributes
Name  Type  Use  Default  Fixed  Annotation
Accuracy  xs:string
annotation
documentation
Measurement of Aspect (ie facing direction) of either whole site or sample point
measured in either letters (e.g. NE, SW) or Degrees (e.g. 270)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: Aspect (asp)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Notes
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData
diagram
children PhysicalData EcologicalData

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData
diagram
children Geomorphology Stratigraphy Topography Hydrology
annotation
documentation
PhysicalFeatures brings together all items related to earthscience features of a site or sample location
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology
diagram
children LookupTerm AltText Source Comment
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Stratigraphy
diagram
type StratigraphyType
children ChronostratigraphicTerm BiostratigraphicTerm LithostratigraphicTerm AltText Comment
annotation
documentation
Allows the linking of geological dating and rock unit names to sites or sample locations
Structure allows for full analysis of stratigraphy e.g. to allow fossils in collections to be sorted by period and zone
Also allows for free text terms when their staus is unknown or for more full descriptions of stratigraphy of site.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct. 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>LNHM model</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography
diagram
children LookupTerm AltText Source Comment
annotation
documentation
Free text description of the topography either related to a site as a feature or recorded as part of a sample (i.e attaches info to recorders and date)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: top</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology
diagram
children LookupTerm AltText Source Comment
annotation
documentation
Hydrological features of the site or collection point
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData
diagram
children BiotopeRecord Synecology
annotation
documentation
Group element used to delineate bio-ecological features of a gathering site
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord
diagram
children Biotope BiotopeData
annotation
documentation
Biotoperecord is an element for recording habitat and land type terms that can be associated either with taxon/specimen data
or directly for recording habitat areas and other variables (e.g. vegetation height) in a gathering site or related to a specific gathering event
Include
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Biotope-occurrence
HISPID4: hab (part) / TDWG: Habitat (part)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/Biotope
diagram
children BiotopeKey BiotopeCode BiotopeLongName AltText
annotation
documentation
Interpreted here as relationships with other taxa
Note this can be recorded as a feature of a location (e.g. at this site the following species are known to grow together)
 or can be used to record relationships in an observation (e.g. caterpillar and observed food plant, parasite and host etc.)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID4: asspp</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/Biotope/BiotopeKey
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
KeyType  xs:string
annotation
documentation
The Primary key for an entry in a standard dictionary or other database
Could use attribute to record database source e.g. a URL for lookup or reference to
Internal entity in DTD (supplied dictionary)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Biotope_Key</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/Biotope/BiotopeCode
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
ClassificationUsed  xs:string
annotation
documentation
Short name or code for a Biotope e.g. in UK NVC mg5a (for a type of mesotrophic grassland)
Attribute records the source or possibly URL for origianl dictionary source
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Short_Name</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/Biotope/BiotopeLongName
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
ClassificationUsed  xs:string
annotation
documentation
The full dictionary name of the habitat within a classification
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Long_Name</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/Biotope/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/BiotopeData
diagram
children AltText Measurement MeasurementQualifier Comment
attributes
Name  Type  Use  Default  Fixed  Annotation
BiotopeDataID  xs:string
annotation
documentation
BiotopeData allows the linkuing of any measurement (e.g. biotope area) to a biotope record
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: biotope_occurrence_data</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/BiotopeData/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/BiotopeData/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/BiotopeData/MeasurementQualifier
diagram
type xs:string
annotation
documentation
measurementQualifier is a freetext field that describes what is being measures e.g. biotope area
It is supported by measurement Type attribute.
e.g. measurementQualifier might be 'males' and measurementType might be 'count'
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: qualifier</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/BiotopeData/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/Synecology
diagram
children TaxonIdentified Comment
annotation
documentation
Interpreted here as relationships with other taxa
Note this can be recorded as a feature of a location (e.g. at this site the following species are known to grow together)
 or can be used to record relationships in an observation (e.g. caterpillar and observed food plant, parasite and host etc.)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID4: asspp</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/Synecology/TaxonIdentified
diagram
type TaxonIdentifiedType
children AltText BotanicalName ZoologicalName BacteriologicalName
attributes
Name  Type  Use  Default  Fixed  Annotation
CodeOfNomenclature  xs:NMTOKEN  required
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/Synecology/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Substrate
diagram
type SubstrateType
children SoilType SedimentType AltText
annotation
documentation
Substrate is the surface or medium from which one or more specimens are recorded or collected
e.g. in soft mud, on leaf surface, under rock, on granite etc.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID4: sub</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Aspect
diagram
type AspectType
children AltText CompassDegrees
attributes
Name  Type  Use  Default  Fixed  Annotation
Accuracy  xs:string
annotation
documentation
Measurement of Aspect (ie facing direction) of either whole site or sample point
measured in either letters (e.g. NE, SW) or Degrees (e.g. 270)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: Aspect (asp)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Exposure
diagram
children AltText Measurement MeasurementQualifier
annotation
documentation
Measurement of the degree of exposure of a collecting or recording site - (often used with marine shore recording) e.g. sheltered
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Exposure/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Exposure/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Exposure/MeasurementQualifier
diagram
type xs:string
annotation
documentation
measurementQualifier is a freetext field that describes what is being measures e.g. biotope area
It is supported by measurement Type attribute.
e.g. measurementQualifier might be 'males' and measurementType might be 'count'
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: qualifier</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Slope
diagram
children AltText Measurement
annotation
documentation
Measurement of the angle of slope either as free text or in number of degress
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Slope/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Slope/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Altitude
diagram
type AltitudeType
children AltitudeLowerValue AltitudeUpperValue
attributes
Name  Type  Use  Default  Fixed  Annotation
AltitudeMethod  xs:NMTOKEN
AltitudeAccuracy  xs:string
AltitudeUnits  xs:NMTOKEN  required
AltAccSrc  xs:NMTOKEN
annotation
documentation
Element for recording altitude of observation or recording area - ranges expressed by lower and Upper values
Note that method, units, accuracy and source of accuracy are attributes which may be enumerated
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>ABIS, ITF, SDTS, IRTF, AHD71
HISPID4: alt ,altacy, altx, altxcy,altdet,altsou / TDWG: ElevationL, Elevelaccur, ElevationH,ElevHAccur / NBN variables recorded in Location_Data using qualifier and accuracy attributes</ExistingStandards>

element FullDataSet/ComponentDataSet/UnitDataset/Identification
diagram
type IdentificationType
children IdentificationEvent TaxonIdentified IdentificationHistory
attributes
Name  Type  Use  Default  Fixed  Annotation
PreferredIdentificationFlag  xs:NMTOKEN  required
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element FullDataSet/ComponentDataSet/UnitDataset/UnitDataSetRelations
diagram
type UnitDataSetRelationsType
children UnitRelationship Comment Date
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
UnitID1  xs:string
UnitID2  xs:string
annotation
documentation
specimen relationships - can be used to link derived specimens, specimen parts or members of a specimen group
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element GeoEcologicalClassification
diagram
children GeoEcologicalCategory GeoEcologicalUnitName GeoEcologicalCategoryLiterature DerivedFlag

element GeoEcologicalClassification/GeoEcologicalCategory
diagram
type xs:string

element GeoEcologicalClassification/GeoEcologicalUnitName
diagram
type xs:string

element GeoEcologicalClassification/GeoEcologicalCategoryLiterature
diagram
type xs:string

element GeoEcologicalClassification/DerivedFlag
diagram
type xs:boolean

element GeologicalRecord
diagram
children Stratigraphy GeologicalData

element GeologicalRecord/Stratigraphy
diagram
type StratigraphyType
children ChronostratigraphicTerm BiostratigraphicTerm LithostratigraphicTerm AltText Comment

element GeologicalRecord/GeologicalData
diagram
children AltText Measurement Comment
attributes
Name  Type  Use  Default  Fixed  Annotation
GeolData-ID  xs:string

element GeologicalRecord/GeologicalData/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element GeologicalRecord/GeologicalData/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier

element GeologicalRecord/GeologicalData/Comment
diagram
type xs:string

element PreferredIdentificationFlag
diagram
type xs:string

element Rocktype
diagram
children RocktypeID RockName RockType RockSubtype Description
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
SystemSuppliedData  xs:NMTOKEN    No

element Rocktype/RocktypeID
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
Type  xs:NMTOKEN  required

element Rocktype/RockName
diagram
type xs:string

element Rocktype/RockType
diagram
type xs:string

element Rocktype/RockSubtype
diagram
type xs:string

element Rocktype/Description
diagram
type xs:string

complexType AddressType
diagram
children AltText AddressLine Town Country Zip
used by
element ContactType/Address
annotation
documentation
In Santa Barbara, I (WGB) insisted on a very basic address definition
CC: A simpler but more flexible version would be to have Address line as a repeatable element
 Could even have Address (AddressLine*) with AddressLine being a text element with Attribute Type = (Line|Town|County|Country|zip|etc)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct. 2001</Date>
	<Comment/>
</Changed>

element AddressType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element AddressType/AddressLine
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
AddressLineType  xs:string
annotation
documentation
Repeatable element to allow for addresses of different structure and length
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element AddressType/Town
diagram
type xs:string
annotation
documentation
Free text address term useful for sorting - See Address
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element AddressType/Country
diagram
type CountryType
children CountryName Iso2Letter Iso3Letter Language DerivedFlag
annotation
documentation
At least one of Countryname|ISO2|ISO3 should be present but more are allowed
This should be the political country having jurisdiction over the collection site.
Historical country names and water bodies outside the coastal zone can be entered under named area.
CC - There is conflict here between use as an address line (essentially text handy for sorting) and more structured use in collections (GatheringSite) where standardised terms linked to ISO country codes may be desirable
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element AddressType/Zip
diagram
type xs:string
annotation
documentation
Text attribute for zip code or post code
appInfo
<Created>
	<Author>by</Author>
	<Date>C.Copp - Oct 2001</Date>
	<Comment/>
</Created>

complexType AgentType
diagram
children SupplierText InstitutionCode URL Contact
used by
elements FullDataSet/ComponentDataSet/Originator FullDataSet/ComponentDataSet/UnitDataset/Originator FullDataSet/ComponentDataSet/OwnerOrCustodian FullDataSet/ComponentDataSet/UnitDataset/OwnerOrCustodian ImageType/OwnerOrCustodian FullDataSet/Supplier
annotation
appInfo
<Created>
	<Author>Markus Doering</Author>
	<Date>27.Feb 2002</Date>
	<Comment/>
</Created>

element AgentType/SupplierText
diagram
type AltText
annotation
documentation
Metadata - text notes relating to the supplier of the FullDataSet or subsets of the data
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element AgentType/InstitutionCode
diagram
type InstitutionCode
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Index Herbariorum, International Directory for Botanic Gardens, ABIS, ITF, TLR, Museum Documentation Association
HISPID4: Institution Code (insid) /  TDWG: Herbarium / NBN:Acronym (part)Free text - presumably for an organisations standard identifer code e.g. Museum or Herbarium abbreviation (BRSMG = Bristol City Museum & Art Gallery)</ExistingStandards>

element AgentType/URL
diagram
type xs:anyURI
annotation
documentation
The Internet URL (Uniform Resource Locator) of the Dataset Supplier
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element AgentType/Contact
diagram
type ContactType
children NameID Organisation PersonName AltText Address CommsNumbers
annotation
documentation
CC - should address also be part of contact detail? It could be different from the parent element
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>

complexType AltitudeType
diagram
children AltitudeLowerValue AltitudeUpperValue
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Altitude FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Altitude
attributes
Name  Type  Use  Default  Fixed  Annotation
AltitudeMethod  xs:NMTOKEN
AltitudeAccuracy  xs:string
AltitudeUnits  xs:NMTOKEN  required
AltAccSrc  xs:NMTOKEN

element AltitudeType/AltitudeLowerValue
diagram
type xs:string
annotation
documentation
See Altitude
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element AltitudeType/AltitudeUpperValue
diagram
type xs:string
annotation
documentation
See Altitude
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

complexType AspectType
diagram
children AltText CompassDegrees
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Aspect FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Aspect
attributes
Name  Type  Use  Default  Fixed  Annotation
Accuracy  xs:string

element AspectType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element AspectType/CompassDegrees
diagram
type xs:string
annotation
documentation
Orientation from North in compass degrees - can be used for recording aspect of a site or as part of the dip/strike measuremnt in geologic records
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

complexType BacteriologicalNameType
diagram
children HigherTaxon NameText NameComments
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/BacteriologicalName TaxonIdentifiedType/BacteriologicalName

element BacteriologicalNameType/HigherTaxon
diagram
type HigherTaxonType
attributes
Name  Type  Use  Default  Fixed  Annotation
TaxonRank  xs:string
annotation
documentation
The scientific name of a taxon with a rank higher than Genus, which is commonly used to classify the group the unit belongs to.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID3: covers "Suprafamilial Group Name" (supfam), Family Name (fam), and Suprageneric Group Name (supgen).</ExistingStandards>

element BacteriologicalNameType/NameText
diagram
type AltText
annotation
documentation
Contains concatenated scientific name including cultivar designations.
Also contains hybrid formulas and formulas for graft chimaera or intergrades.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: fulnam  / ITF</ExistingStandards>

element BacteriologicalNameType/NameComments
diagram
type xs:string
annotation
documentation
Any free text comments related to the name
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: namcom</ExistingStandards>

complexType BotanicalNameType
diagram
children HigherTaxon NameText NamedHybridFlag Genus FirstEpithet SpeciesQualifier SecondEpithet Rank NameAuthorCitation BasionymAuthorTeam CombinationAuthorTeam ExAuthorTeam VernacularNames CultivatedPlantNameElements MycologicalNameElements LichenNameElements NameComments
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/BotanicalName TaxonIdentifiedType/BotanicalName

element BotanicalNameType/HigherTaxon
diagram
type HigherTaxonType
attributes
Name  Type  Use  Default  Fixed  Annotation
TaxonRank  xs:string
annotation
documentation
The scientific name of a taxon with a rank higher than Genus, which is commonly used to classify the group the unit belongs to.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID3: covers "Suprafamilial Group Name" (supfam), Family Name (fam), and Suprageneric Group Name (supgen).</ExistingStandards>

element BotanicalNameType/NameText
diagram
type AltText
annotation
documentation
Contains concatenated scientific name including cultivar designations.
Also contains hybrid formulas and formulas for graft chimaera or intergrades.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: fulnam  / ITF</ExistingStandards>

element BotanicalNameType/NamedHybridFlag
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: Hybrid Flag (hyb) </ExistingStandards>

element BotanicalNameType/Genus
diagram
type Genus
annotation
documentation
A validly published generic name under the ICBN, ICZN, ICBN, or a manuscript name,
or an intergeneric hybrid name, validly published under the ICBN, without the leading multiplication sign, eg. Halimiocistus for x Halimiocistus sahucii.
or the name of an intergeneric graft hybrid or graft chimaera, validly published under the Cultivated Code, eg. Crataegomespilus for + Crataegomespilus dardarii.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: Genus Name (gen) as to content, not all rules. </ExistingStandards>

element BotanicalNameType/FirstEpithet
diagram
type Epithet
annotation
documentation
first word in a taxonomic name combination other than a generic term or term indicative of rank
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>covers HISPID "Subgeneric Group Name" (subgen) but without the preceeding rank abbreviation (entered under Rank).
Also covers HISPID "Species Epithet" (sp)</ExistingStandards>

element BotanicalNameType/SpeciesQualifier
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>WGB</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID: "Species Qualifier" (spql)</ExistingStandards>

element BotanicalNameType/SecondEpithet
diagram
type Epithet
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: "Infraspecific Epithet" (isp) without the hybrid stuff.</ExistingStandards>

element BotanicalNameType/Rank
diagram
type Rank
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: covers "Infraspecific Rank Flag" (isprk) as well as the rank ("group") of a "subgeneric group name" given in that field.</ExistingStandards>

element BotanicalNameType/NameAuthorCitation
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>WGB</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID: "Species Author" (spau) if the complete name refers to a species;
HISPID: "Infraspecific Author" (ispau), if the complete name refers to an infraspecies.</ExistingStandards>

element BotanicalNameType/BasionymAuthorTeam
diagram
type xs:string
annotation
documentation
Authors of the original name for a taxon which has subsequently been revisied but retains the same stem or epithet
Required in botanical and bacteriological nomenclatural codes
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4 has Basionym (basnam) as an element but not the author team</ExistingStandards>

element BotanicalNameType/CombinationAuthorTeam
diagram
type xs:string
annotation
documentation
Authority for a taxonomic name combination
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element BotanicalNameType/ExAuthorTeam
diagram
type xs:string
annotation
documentation
Attribute of a full taxonomic citation used to connect the names of two author/author groups the second of which is citing or validly publishing a name proposed by the first
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element BotanicalNameType/VernacularNames
diagram
type VernacularNames
annotation
appInfo
<Created>
	<Author>WGB</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID: "Vernacular Names" (vernam)</ExistingStandards>

element BotanicalNameType/CultivatedPlantNameElements
diagram
children CultivarGroupName CultivarName TradeDesignationName
annotation
documentation
Horticultural and trade name element for plants
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element BotanicalNameType/CultivatedPlantNameElements/CultivarGroupName
diagram
type xs:string
annotation
documentation
Cultivar group name e.g. "Cauliflower"
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: culgnam /ITF / Treharne(1995)</ExistingStandards>

element BotanicalNameType/CultivatedPlantNameElements/CultivarName
diagram
type xs:string
annotation
documentation
Cultivar name e.g. the type of cauliflower.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: culnam / ITF /ICNCP  / Treharne(1995)</ExistingStandards>

element BotanicalNameType/CultivatedPlantNameElements/TradeDesignationName
diagram
type xs:string
annotation
documentation
Trade name used for a specific cultivar
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: tranam  / ITF  / ICNCP (Treharne(1995)</ExistingStandards>

element BotanicalNameType/MycologicalNameElements
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element BotanicalNameType/LichenNameElements
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element BotanicalNameType/NameComments
diagram
type xs:string
annotation
documentation
Any free text comments related to the name
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: namcom</ExistingStandards>

complexType CommsNumbersType
diagram
children Prefix CommNumber CommConstraint
used by
element ContactType/CommsNumbers
attributes
Name  Type  Use  Default  Fixed  Annotation
CommType  xs:NMTOKEN
PreferredFlag  xs:NMTOKEN

element CommsNumbersType/Prefix
diagram
type xs:string
annotation
documentation
Prefix to use before dialing: e.g. country code

element CommsNumbersType/CommNumber
diagram
type xs:string
annotation
documentation
full number e.g. as dialled within the country or the full email address
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Number</ExistingStandards>

element CommsNumbersType/CommConstraint
diagram
type xs:string
annotation
documentation
free text note for constraints on use e.g. "weekdays only" or "home number"
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Constraints</ExistingStandards>

complexType ContactType
diagram
children NameID Organisation PersonName AltText Address CommsNumbers
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/Contact AgentType/Contact

element ContactType/NameID
diagram
type OpenID

element ContactType/Organisation
diagram
type OrganisationType
children OrganisationName OrgAcronym InstitutionCode
annotation
documentation
Name (elements) for organisations
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ContactType/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element ContactType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element ContactType/Address
diagram
type AddressType
children AltText AddressLine Town Country Zip
annotation
documentation
In Santa Barbara, I (WGB) insisted on a very basic address definition
CC: A simpler but more flexible version would be to have Address line as a repeatable element
 Could even have Address (AddressLine*) with AddressLine being a text element with Attribute Type = (Line|Town|County|Country|zip|etc)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct. 2001</Date>
	<Comment/>
</Changed>

element ContactType/CommsNumbers
diagram
type CommsNumbersType
children Prefix CommNumber CommConstraint
attributes
Name  Type  Use  Default  Fixed  Annotation
CommType  xs:NMTOKEN
PreferredFlag  xs:NMTOKEN
annotation
documentation
Added to replace fax, email and telephone elements with a repeatable and more flexible structure where the element attribute CommType is enumnerated to include tel,fax,email
Attribute Preferred marks the first choice where there are multiple numbers
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN : element Contact_Number</ExistingStandards>

complexType CountryType
diagram
children CountryName Iso2Letter Iso3Letter Language DerivedFlag
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/Country AddressType/Country

element CountryType/CountryName
diagram
type xs:string
annotation
documentation
Free text full country name (preferably from a standard list e.g. ISO or H&B)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>ABIS, ITF, TLR, WGSUB, ISO, Hollis& Brummitt (1992)
HISPID4: cou and scou  : NBN: admin_area</ExistingStandards>

element CountryType/Iso2Letter
diagram
type xs:string
annotation
documentation
2 letter ISO code for the representation of a country name
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>ISO
HISPID: iso</ExistingStandards>

element CountryType/Iso3Letter
diagram
type xs:string
annotation
documentation
2 letter ISO code for the representation of a country name
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element CountryType/Language
diagram
type xs:language
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element CountryType/DerivedFlag
diagram
type xs:boolean
annotation
documentation
attribute showing that information is derived - usually from a system supplied dictionary
appInfo
<Created>
	<Author>WGB</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: ? System_supplied_data</ExistingStandards>

complexType DateType
diagram
children DateBegin DateEnd AltText
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AccessionDate/Date FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AcquisitionDate/Date FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitHistory/Date FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact/Date FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/DateFrom/Date FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/DateTo/Date IdentificationType/IdentificationEvent/IdentificationDate/Date ImageType/Date LookupTermType/TermList/Date SourceType/ElectronicDocument/Date UnitDataSetRelationsType/Date FullDataSet/Datasource/Dbcurrentdate FullDataSet/Datasource/Dbdatadate FullDataSet/Datasource/Dbexpirydate
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
documentation
Date has a three part structure - two elements and an attribute
VagueDateBegin = First date of a range or date for a single date
VagueDateEnd = last date in a range
DateType attribute can be enumerated to allow for various date formats (e.g. dd/mm/yyyy or to allow a parser to interpret terms such as summer 69 or 1974 etc)
Note terms such as summer would be interpretted by standard begin and end dates.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: vaguedatestart, vaguedateend and vaguedatetype</ExistingStandards>

element DateType/DateBegin
diagram
type xs:string
annotation
documentation
Part of date. Format datebegin, dateend and date type allows recording of dates as ranges or approximations.

element DateType/DateEnd
diagram
type xs:string

element DateType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

complexType DurationType
diagram
type extension of xs:string
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Project/Duration ImageType/MovingImage/Duration
attributes
Name  Type  Use  Default  Fixed  Annotation
MeasurementUnits  xs:string

complexType HigherTaxonType
diagram
type extension of xs:string
used by
elements BacteriologicalNameType/HigherTaxon BotanicalNameType/HigherTaxon ZoologicalNameType/HigherTaxon
attributes
Name  Type  Use  Default  Fixed  Annotation
TaxonRank  xs:string

complexType IdentificationType
diagram
children IdentificationEvent TaxonIdentified IdentificationHistory
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Identification FullDataSet/ComponentDataSet/UnitDataset/Identification
attributes
Name  Type  Use  Default  Fixed  Annotation
PreferredIdentificationFlag  xs:NMTOKEN  required

element IdentificationType/IdentificationEvent
diagram
children Indentifier IdentificationReference IdentificationDate IdentificationNotes IdentificationFoundIn NameAddendum
attributes
Name  Type  Use  Default  Fixed  Annotation
VerificationLevel  xs:NMTOKEN
IdentificationType  xs:NMTOKEN  required
TaxonIdentificationQualifier  xs:NMTOKEN
RankQualified  xs:NMTOKEN
annotation
documentation
equivalent to Taxon_Determination in NBN
Made VerificationLevel (vlev), IdentificationType (det) , TaxonIdentificationQualifier (idql) . RankQualified (rkql) attributes
An identication event records a taxonomic determination or other form of identication applied to a unit (specimen(s))
A unit may have many identication events and one may be selected as the preferred identiciation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>includes vlev, det, idql, rkql    from HISPID4</ExistingStandards>

element IdentificationType/IdentificationEvent/Indentifier
diagram
children NameID AltText PersonName Organisation
annotation
documentation
Person or persons determining, confirming or denying the identity of a unit in an identification event.
would be improved as a composite element to allow details of institutional affiliation etc.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID4: vnam / NBN determiner</ExistingStandards>

element IdentificationType/IdentificationEvent/Indentifier/NameID
diagram
type OpenID

element IdentificationType/IdentificationEvent/Indentifier/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element IdentificationType/IdentificationEvent/Indentifier/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element IdentificationType/IdentificationEvent/Indentifier/Organisation
diagram
type OrganisationType
children OrganisationName OrgAcronym InstitutionCode
annotation
documentation
Name (elements) for organisations
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element IdentificationType/IdentificationEvent/IdentificationReference
diagram
children AltText Source
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: vlit  / NBN: Source</ExistingStandards>

element IdentificationType/IdentificationEvent/IdentificationReference/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element IdentificationType/IdentificationEvent/IdentificationReference/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element IdentificationType/IdentificationEvent/IdentificationDate
diagram
children Date AltText
annotation
documentation
May need to use a vague date structure (e.g. begin,end,type)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>includes HISPID4 : vdat and  texvdat / NBN determination_date (vague date )</ExistingStandards>

element IdentificationType/IdentificationEvent/IdentificationDate/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
documentation
Date has a three part structure - two elements and an attribute
VagueDateBegin = First date of a range or date for a single date
VagueDateEnd = last date in a range
DateType attribute can be enumerated to allow for various date formats (e.g. dd/mm/yyyy or to allow a parser to interpret terms such as summer 69 or 1974 etc)
Note terms such as summer would be interpretted by standard begin and end dates.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: vaguedatestart, vaguedateend and vaguedatetype</ExistingStandards>

element IdentificationType/IdentificationEvent/IdentificationDate/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element IdentificationType/IdentificationEvent/IdentificationNotes
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID4: idcom /  NBN: Comme</ExistingStandards>

element IdentificationType/IdentificationEvent/IdentificationFoundIn
diagram
children AltText Source
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element IdentificationType/IdentificationEvent/IdentificationFoundIn/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element IdentificationType/IdentificationEvent/IdentificationFoundIn/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element IdentificationType/IdentificationEvent/NameAddendum
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element IdentificationType/TaxonIdentified
diagram
type TaxonIdentifiedType
children AltText BotanicalName ZoologicalName BacteriologicalName
attributes
Name  Type  Use  Default  Fixed  Annotation
CodeOfNomenclature  xs:NMTOKEN  required
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element IdentificationType/IdentificationHistory
diagram
type xs:string
annotation
documentation
This is a free text field ONLY for use when extracting data from datasources where the identification or verification history
is a free text field. In normal circumstances the history can be constructed by sorting identification events by date and reference to the
preferred identification flag
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: vhist</ExistingStandards>

complexType ImageColoursType
diagram
children LookupTerm AltText Source Comment
used by
elements ImageType/MovingImage/ImageColours ImageType/DigitalImage/ImageColours

element ImageColoursType/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element ImageColoursType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element ImageColoursType/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element ImageColoursType/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

complexType ImageFormatType
diagram
children LookupTerm AltText Source Comment
used by
elements ImageType/MovingImage/ImageFormat ImageType/ArtWork/ImageFormat ImageType/DigitalImage/ImageFormat ImageType/PhotographicImage/ImageFormat ImageType/StoredImage/ImageFormat ImageType/ImageInReference/ImageFormat

element ImageFormatType/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element ImageFormatType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element ImageFormatType/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element ImageFormatType/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

complexType ImageType
diagram
children ImageType Title Date ImageBy MovingImage ArtWork DigitalImage PhotographicImage StoredImage ImageInReference Measurement MeasurementQualifier RefCatNumber ImageContent IPR OwnerOrCustodian Source
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitImage/Image SourceType/Image
attributes
Name  Type  Use  Default  Fixed  Annotation
Original  xs:NMTOKEN

element ImageType/ImageType
diagram
children LookupTerm AltText Source Comment
annotation
documentation
Lookup term or free term describing types of image - can include everything from watercolours and etchings to digital photographs and video
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageType/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element ImageType/ImageType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element ImageType/ImageType/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element ImageType/ImageType/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/Title
diagram
type xs:string

element ImageType/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageBy
diagram
children NameID AltText PersonName Organisation Role
annotation
documentation
Element for grouping people responsible for an image and their respective roles
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageBy/NameID
diagram
type OpenID

element ImageType/ImageBy/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element ImageType/ImageBy/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element ImageType/ImageBy/Organisation
diagram
type OrganisationType
children OrganisationName OrgAcronym InstitutionCode
annotation
documentation
Name (elements) for organisations
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageBy/Role
diagram
type Role
annotation
documentation
Role played by a person within the element context e.g. Recorder or Botanist in GatheringEvent, Photographer or artist in Image
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/MovingImage
diagram
children ImageFormat Duration ImageColours Soundtrack NMedia

element ImageType/MovingImage/ImageFormat
diagram
type ImageFormatType
children LookupTerm AltText Source Comment
annotation
documentation
Lookup term including Code for image format e.g. jpg, pcx, tif for digital images, 16mm, beta video, AVI, mpg for moving images
transparency, print for photographs etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/MovingImage/Duration
diagram
type DurationType
attributes
Name  Type  Use  Default  Fixed  Annotation
MeasurementUnits  xs:string
annotation
documentation
measurement of time elapsed - decimal number
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>Taxon48: Duration</ExistingStandards>

element ImageType/MovingImage/ImageColours
diagram
type ImageColoursType
children LookupTerm AltText Source Comment
annotation
documentation
Colour state of the image e.g. monochrome, 16 bit, 24 bit, technicolour etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/MovingImage/Soundtrack
diagram
type xs:string
annotation
documentation
Soundtrack type e.g. Nicam Stereo, Dolby, mono etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/MovingImage/NMedia
diagram
type xs:string
annotation
documentation
Number of media holding the moving image e.g. number of film reels or CDs
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ArtWork
diagram
children ImageFormat Material Imagepart

element ImageType/ArtWork/ImageFormat
diagram
type ImageFormatType
children LookupTerm AltText Source Comment
annotation
documentation
Lookup term including Code for image format e.g. jpg, pcx, tif for digital images, 16mm, beta video, AVI, mpg for moving images
transparency, print for photographs etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ArtWork/Material
diagram
type xs:string

element ImageType/ArtWork/Imagepart
diagram
type xs:string
annotation
documentation
part of the image made of the material involved (e.g. frame = wood)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/DigitalImage
diagram
children ImageFileName ImageFormat NPixels ImageColours ImageFileSize

element ImageType/DigitalImage/ImageFileName
diagram
type xs:string

element ImageType/DigitalImage/ImageFormat
diagram
type ImageFormatType
children LookupTerm AltText Source Comment
annotation
documentation
Lookup term including Code for image format e.g. jpg, pcx, tif for digital images, 16mm, beta video, AVI, mpg for moving images
transparency, print for photographs etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/DigitalImage/NPixels
diagram
type xs:string
annotation
documentation
Image pixel resolution e.g. 640 x 480
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/DigitalImage/ImageColours
diagram
type ImageColoursType
children LookupTerm AltText Source Comment
annotation
documentation
Colour state of the image e.g. monochrome, 16 bit, 24 bit, technicolour etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/DigitalImage/ImageFileSize
diagram
type xs:string
annotation
documentation
size of the stored image - usually a number with unit as an attribute e.g. megaBytes
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/PhotographicImage
diagram
children ImageFormat PhotoProcess

element ImageType/PhotographicImage/ImageFormat
diagram
type ImageFormatType
children LookupTerm AltText Source Comment
annotation
documentation
Lookup term including Code for image format e.g. jpg, pcx, tif for digital images, 16mm, beta video, AVI, mpg for moving images
transparency, print for photographs etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/PhotographicImage/PhotoProcess
diagram
type xs:string
annotation
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/StoredImage
diagram
children BinaryImage URI ImageFormat Comment
annotation
documentation
Element for access to the actual image either as binary data included in the data file or as a URI to the source of the image
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/StoredImage/BinaryImage
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
E-dtype  xs:NMTOKEN      string
annotation
documentation
Place holder for a binary image - nonparsed data External General Notation
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/StoredImage/URI
diagram
type xs:anyURI
annotation
documentation
Universal Resource Identifier - Path to electronic source of document either internal or external (e.g. web address)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/StoredImage/ImageFormat
diagram
type ImageFormatType
children LookupTerm AltText Source Comment
annotation
documentation
Lookup term including Code for image format e.g. jpg, pcx, tif for digital images, 16mm, beta video, AVI, mpg for moving images
transparency, print for photographs etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/StoredImage/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference
diagram
children AltText ImageFormat Reference LocationInReference Comment
annotation
documentation
Image in Reference allows the linking of images to documents and publications. This can be important for many reasons
e.g. where the image may represent a type specimen or for tracking the publication history of images and image copies
appInfo
<Created>
	<Author>by</Author>
	<Date>CC. Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element ImageType/ImageInReference/ImageFormat
diagram
type ImageFormatType
children LookupTerm AltText Source Comment
annotation
documentation
Lookup term including Code for image format e.g. jpg, pcx, tif for digital images, 16mm, beta video, AVI, mpg for moving images
transparency, print for photographs etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference/Reference
diagram
type ReferenceType
children SourceID RefTitle RefDate DocumentAuthor Journal RefVolume RefPart RefNumber RefPages RefSupplement RefEdition RefSymposium RefPublisher RefPlacePublished RefCatNumber
attributes
Name  Type  Use  Default  Fixed  Annotation
RefType  xs:NMTOKEN  required
annotation
documentation
Placeholder for references whilst constructing the schema CC
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: </ExistingStandards>

element ImageType/ImageInReference/LocationInReference
diagram
children ImagePageNumber ImagePlateNumber ImageFigureNumber Comment
annotation
documentation
Element listing the place in reference that an image or images are located
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference/LocationInReference/ImagePageNumber
diagram
type xs:string
annotation
documentation
page number for the imaged specimen
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference/LocationInReference/ImagePlateNumber
diagram
type xs:string
annotation
documentation
Plate number for the imaged specimen
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference/LocationInReference/ImageFigureNumber
diagram
type xs:string
annotation
documentation
Figure number for the imaged specimen
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference/LocationInReference/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageInReference/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/Measurement
diagram
type MeasurementType
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
annotation
documentation
measurement is the actiual measurement - measurement is qualigied by attributes:
measurementType: what type of measurement e.g. count, area, linear measurement
measurementUnits: units that measurement is recorded in e...g. hectares, kilometres, kilogrammes etc.
measurementAccuracy: describes accuracy e.g. approximate or +/- 50
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: measurement (partim)</ExistingStandards>

element ImageType/MeasurementQualifier
diagram
type xs:string
annotation
documentation
measurementQualifier is a freetext field that describes what is being measures e.g. biotope area
It is supported by measurement Type attribute.
e.g. measurementQualifier might be 'males' and measurementType might be 'count'
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: qualifier</ExistingStandards>

element ImageType/RefCatNumber
diagram
type RefCatNumberType
attributes
Name  Type  Use  Default  Fixed  Annotation
NumberType  xs:NMTOKEN
annotation
documentation
Documents and images may have various reference numbers associated with them e.g. ISBN, ISSN, internal filing numbers etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageContent
diagram
children LookupTerm AltText Source Comment
annotation
documentation
allows a structured analysis of the picture content for indexing purposes
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element ImageType/ImageContent/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element ImageType/ImageContent/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element ImageType/ImageContent/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element ImageType/ImageContent/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ImageType/IPR
diagram
type IPRType
children Ackn Disclaim UsageRestr Purpose Logo
annotation
documentation
Element referring to the Intellectual Property Rights apertaining to a dataset or unit data
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element ImageType/OwnerOrCustodian
diagram
type AgentType
children SupplierText InstitutionCode URL Contact
annotation
documentation
Uses the same structure as other contact elements (e.g. originator & supplier) therefore could be generalised via use of a Type Attribute
Individual or organisation with 'ownership' of a dataset
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element ImageType/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

complexType IPRType
diagram
children Ackn Disclaim UsageRestr Purpose Logo
used by
elements FullDataSet/ComponentDataSet/IPR FullDataSet/ComponentDataSet/UnitDataset/IPR ImageType/IPR

element IPRType/Ackn
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element IPRType/Disclaim
diagram
type xs:string
annotation
documentation
metadata relating to disclaimer on data quality
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element IPRType/UsageRestr
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element IPRType/Purpose
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element IPRType/Logo
diagram
type xs:string
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

complexType LookupTermType
diagram
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/NatureOrPreservationMode/LookupTerm FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/TypeStatus/LookupTerm FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology/LookupTerm FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography/LookupTerm FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology/LookupTerm ImageType/ImageType/LookupTerm ImageType/ImageContent/LookupTerm ImageColoursType/LookupTerm ImageFormatType/LookupTerm StratigraphyType/ChronostratigraphicTerm/LookupTerm StratigraphyType/BiostratigraphicTerm/LookupTerm StratigraphyType/LithostratigraphicTerm/LookupTerm SubstrateType/SoilType/LookupTerm SubstrateType/SedimentType/LookupTerm
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string

element LookupTermType/TermList
diagram
children TermListID TermListName TermListVersion Source Date
annotation
documentation
A named list of terms e.g. UK NVC or Chronostratigraphic terms
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/TermList/TermListID
diagram
type xs:string
annotation
documentation
Unique identifier for a termlist in a database system
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/TermList/TermListName
diagram
type xs:string
annotation
documentation
Name of the specific term list e.g. CORINE
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/TermList/TermListVersion
diagram
type xs:string
annotation
documentation
Version of the term list - e.g. many dated versions of CORINE
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/TermList/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element LookupTermType/TermList/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
documentation
Date has a three part structure - two elements and an attribute
VagueDateBegin = First date of a range or date for a single date
VagueDateEnd = last date in a range
DateType attribute can be enumerated to allow for various date formats (e.g. dd/mm/yyyy or to allow a parser to interpret terms such as summer 69 or 1974 etc)
Note terms such as summer would be interpretted by standard begin and end dates.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: vaguedatestart, vaguedateend and vaguedatetype</ExistingStandards>

element LookupTermType/LongTermName
diagram
type LongTermName
annotation
documentation
LongTermname is the full term that might appear in a lookup table e.g. in a list of types: Holotype
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/ShortTermName
diagram
type ShortTermName
annotation
documentation
ShortTernName is a code or shortened version of a term that might be used in a database or lookup table
e.g. HOLO for Holotype
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/Language
diagram
type xs:language
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element LookupTermType/Definition
diagram
type xs:string
annotation
documentation
free text field for definition of classified and descriptive terms
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/ParentTerm
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
LookupTermID  xs:string
annotation
documentation
Reference to a term in a term list that is the parent or broader term for the current term (thesaurus bt)
appInfo
<Created>
	<Author>Cc</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element LookupTermType/SortPosition
diagram
type xs:string
annotation
documentation
Sort position allows terms to be sorted into non-alphanumeric sequences. In the case of strigraphic sequences (chron, bio & litho) the sort order
can use a 'pseudo-date' based on known radiometric ages e.g. 570 for the base of the Cambrian 210 for the base of the Jurassic etc.
In other lists list management software could gnerate sort numbers dynamically. This element differs from Parent term because many terms may share the same parent (e.g. hierarchical level)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

complexType MeasurementType
diagram
children MeasurementType Data MeasurmentUnits MeasurementAccuracy MeasurementMethod MeasurementQualifier
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitData/Measurement FullDataSet/ComponentDataSet/UnitDataset/NoOfIndividuals/Measurement FullDataSet/ComponentDataSet/UnitDataset/AbundanceOrDensity/Measurement FullDataSet/ComponentDataSet/UnitDataset/UnitDataMeasurement/Measurement FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/BiotopeData/Measurement FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Exposure/Measurement FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Slope/Measurement GeologicalRecord/GeologicalData/Measurement ImageType/Measurement

element MeasurementType/MeasurementType
diagram
type xs:string

element MeasurementType/Data
diagram
type xs:string

element MeasurementType/MeasurmentUnits
diagram
type xs:string

element MeasurementType/MeasurementAccuracy
diagram
type xs:string

element MeasurementType/MeasurementMethod
diagram
type xs:string

element MeasurementType/MeasurementQualifier
diagram
type xs:string
annotation
documentation
measurementQualifier is a freetext field that describes what is being measures e.g. biotope area
It is supported by measurement Type attribute.
e.g. measurementQualifier might be 'males' and measurementType might be 'count'
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: qualifier</ExistingStandards>

complexType NamedCollectionType
diagram
children CollectionID AccessionCatalogueID CollectionName Description AssociatedName Source
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/NamedCollection FullDataSet/ComponentDataSet/UnitDataset/NamedCollection
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required

element NamedCollectionType/CollectionID
diagram
type OpenID
annotation
documentation
Syn: Unit_ID
Unique identifier for collection in a computerised system
this is a synonym of Unit_ID
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element NamedCollectionType/AccessionCatalogueID
diagram
type OpenID
annotation
documentation
Unique identifier for an accessions catalogue id in a computerised system
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element NamedCollectionType/CollectionName
diagram
type xs:string
annotation
documentation
Many collections have distinctive names e.g. Stanley-Lewis Bird's Egg Collection or The National Clematis Collection
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element NamedCollectionType/Description
diagram
type xs:string
annotation
documentation
Used wherever a description field is needed. Free text and could be in rtf or html.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element NamedCollectionType/AssociatedName
diagram
children NameID Organisation PersonName AltText Role Comment
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
annotation
documentation
LNHM
Links collector and other names to a specific collection e.g. known donors or previous owners
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct. 2001</Date>
	<Comment/>
</Created>

element NamedCollectionType/AssociatedName/NameID
diagram
type OpenID

element NamedCollectionType/AssociatedName/Organisation
diagram
type OrganisationType
children OrganisationName OrgAcronym InstitutionCode
annotation
documentation
Name (elements) for organisations
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element NamedCollectionType/AssociatedName/PersonName
diagram
type PersonNameType
children NameTitle FirstNames Initials LastName Honorifics
annotation
documentation
Group element for parts of a personal name - see also name_ID (ref to a database entry) and fullName (free text format)
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> 2001</Date>
	<Comment>from old Name Element</Comment>
</Changed>

element NamedCollectionType/AssociatedName/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element NamedCollectionType/AssociatedName/Role
diagram
type Role
annotation
documentation
Role played by a person within the element context e.g. Recorder or Botanist in GatheringEvent, Photographer or artist in Image
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element NamedCollectionType/AssociatedName/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element NamedCollectionType/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

complexType OrganisationType
diagram
children OrganisationName OrgAcronym InstitutionCode
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/Organisation FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/Organisation ContactType/Organisation IdentificationType/IdentificationEvent/Indentifier/Organisation ImageType/ImageBy/Organisation NamedCollectionType/AssociatedName/Organisation

element OrganisationType/OrganisationName
diagram
type xs:string
annotation
documentation
Full organisation name e.g. Taxonomic Database Working Group
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element OrganisationType/OrgAcronym
diagram
type xs:string
annotation
documentation
Acronym or short term for an organisation e.g. TDWG
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element OrganisationType/InstitutionCode
diagram
type InstitutionCode
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>Index Herbariorum, International Directory for Botanic Gardens, ABIS, ITF, TLR, Museum Documentation Association
HISPID4: Institution Code (insid) /  TDWG: Herbarium / NBN:Acronym (part)Free text - presumably for an organisations standard identifer code e.g. Museum or Herbarium abbreviation (BRSMG = Bristol City Museum & Art Gallery)</ExistingStandards>

complexType PersonNameType
diagram
children NameTitle FirstNames Initials LastName Honorifics
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/PersonName FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/PersonName FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/AdditionalCollector/PersonName FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/PersonName ContactType/PersonName IdentificationType/IdentificationEvent/Indentifier/PersonName ImageType/ImageBy/PersonName NamedCollectionType/AssociatedName/PersonName

element PersonNameType/NameTitle
diagram
type xs:string
annotation
documentation
Mode of address e.g. Mr. Dr. Professor - could be controlled from lookup list
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Title</ExistingStandards>

element PersonNameType/FirstNames
diagram
type xs:string
annotation
documentation
First or Christian names e.g. Charles
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Forename</ExistingStandards>

element PersonNameType/Initials
diagram
type xs:string
annotation
documentation
Initials of forenames e.g. C.J.T.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Initials</ExistingStandards>

element PersonNameType/LastName
diagram
type xs:string
annotation
documentation
Last name, surname or family name e.g. Darwin
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Surname</ExistingStandards>

element PersonNameType/Honorifics
diagram
type xs:string
annotation
documentation
Degrees, abbreviations of rank etc. that follow a name e.g. B.Sc., MBE etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Honorifics</ExistingStandards>

complexType RefCatNumberType
diagram
type extension of xs:string
used by
elements ImageType/RefCatNumber ReferenceType/RefCatNumber SourceType/ElectronicDocument/RefCatNumber
attributes
Name  Type  Use  Default  Fixed  Annotation
NumberType  xs:NMTOKEN

complexType ReferenceType
diagram
children SourceID RefTitle RefDate DocumentAuthor Journal RefVolume RefPart RefNumber RefPages RefSupplement RefEdition RefSymposium RefPublisher RefPlacePublished RefCatNumber
used by
elements ImageType/ImageInReference/Reference SourceType/Reference
attributes
Name  Type  Use  Default  Fixed  Annotation
RefType  xs:NMTOKEN  required

element ReferenceType/SourceID
diagram
type OpenID

element ReferenceType/RefTitle
diagram
type xs:string
annotation
documentation
Title of book, paper, article or paper in symposium
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Title</ExistingStandards>

element ReferenceType/RefDate
diagram
type xs:string
annotation
documentation
Date of publication (usually Year)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Year_Vague_Date_Start, Year_Vague_Date_End, Year_Vague_Date_Type</ExistingStandards>

element ReferenceType/DocumentAuthor
diagram
type xs:string
annotation
documentation
author name in format for reference citations e.g. Copp, C.J.T.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ReferenceType/Journal
diagram
children JournalID ShortTermName LongTermName RefPublisher Description
annotation
documentation
Journal or similar serial publication name and details
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Journal element</ExistingStandards>

element ReferenceType/Journal/JournalID
diagram
type xs:string
annotation
documentation
Unique identifier in a database
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Journal_Key</ExistingStandards>

element ReferenceType/Journal/ShortTermName
diagram
type ShortTermName
annotation
documentation
ShortTernName is a code or shortened version of a term that might be used in a database or lookup table
e.g. HOLO for Holotype
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ReferenceType/Journal/LongTermName
diagram
type LongTermName
annotation
documentation
LongTermname is the full term that might appear in a lookup table e.g. in a list of types: Holotype
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element ReferenceType/Journal/RefPublisher
diagram
type xs:string
annotation
documentation
Publisher of the publication
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Publisher</ExistingStandards>

element ReferenceType/Journal/Description
diagram
type xs:string
annotation
documentation
Used wherever a description field is needed. Free text and could be in rtf or html.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

element ReferenceType/RefVolume
diagram
type xs:string
annotation
documentation
Volume number - if any
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Volume</ExistingStandards>

element ReferenceType/RefPart
diagram
type xs:string
annotation
documentation
Part number of publication - if any
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Part</ExistingStandards>

element ReferenceType/RefNumber
diagram
type xs:string
annotation
documentation
Volume or other number (e.g. issue) of publication
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Number</ExistingStandards>

element ReferenceType/RefPages
diagram
type xs:string
annotation
documentation
number of papges or page range for publication or paper
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Pages</ExistingStandards>

element ReferenceType/RefSupplement
diagram
type xs:string
annotation
documentation
Supplement name or number for publication where appropriate
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Supplement</ExistingStandards>

element ReferenceType/RefEdition
diagram
type xs:string
annotation
documentation
Edition number for reprinted publications
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Edition</ExistingStandards>

element ReferenceType/RefSymposium
diagram
type xs:string
annotation
documentation
Symposium name or title of symposium volume where appropriate
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Symposium_Title</ExistingStandards>

element ReferenceType/RefPublisher
diagram
type xs:string
annotation
documentation
Publisher of the publication
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Publisher</ExistingStandards>

element ReferenceType/RefPlacePublished
diagram
type xs:string
annotation
documentation
Place of publication
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Place_of_Publication</ExistingStandards>

element ReferenceType/RefCatNumber
diagram
type RefCatNumberType
attributes
Name  Type  Use  Default  Fixed  Annotation
NumberType  xs:NMTOKEN
annotation
documentation
Documents and images may have various reference numbers associated with them e.g. ISBN, ISSN, internal filing numbers etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

complexType SourceType
diagram
children SourceID Reference Image ElectronicDocument SourceURL
used by
elements NamedCollectionType/Source SubstrateType/SedimentType/Source SubstrateType/SoilType/Source StratigraphyType/LithostratigraphicTerm/Source StratigraphyType/BiostratigraphicTerm/Source StratigraphyType/ChronostratigraphicTerm/Source LookupTermType/TermList/Source ImageFormatType/Source ImageColoursType/Source ImageType/Source ImageType/ImageContent/Source ImageType/ImageType/Source IdentificationType/IdentificationEvent/IdentificationFoundIn/Source IdentificationType/IdentificationEvent/IdentificationReference/Source FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology/Source FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography/Source FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology/Source FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/CountrySubdivision/Source FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitFact/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/SpecimenUnitStatusSrc/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/TypeStatus/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitNumber/Source FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/Source
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string

element SourceType/SourceID
diagram
type OpenID

element SourceType/Reference
diagram
type ReferenceType
children SourceID RefTitle RefDate DocumentAuthor Journal RefVolume RefPart RefNumber RefPages RefSupplement RefEdition RefSymposium RefPublisher RefPlacePublished RefCatNumber
attributes
Name  Type  Use  Default  Fixed  Annotation
RefType  xs:NMTOKEN  required
annotation
documentation
Placeholder for references whilst constructing the schema CC
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: </ExistingStandards>

element SourceType/Image
diagram
type ImageType
children ImageType Title Date ImageBy MovingImage ArtWork DigitalImage PhotographicImage StoredImage ImageInReference Measurement MeasurementQualifier RefCatNumber ImageContent IPR OwnerOrCustodian Source
attributes
Name  Type  Use  Default  Fixed  Annotation
Original  xs:NMTOKEN
annotation
documentation
Compound element that can include any type of image including paintings, photographs, digital photographs and video
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Image</ExistingStandards>

element SourceType/ElectronicDocument
diagram
children Title DocumentAuthor Date FileName URI RefCatNumber
attributes
Name  Type  Use  Default  Fixed  Annotation
URIType  xs:string
annotation
documentation
Path to a document either a Web URL or an internal path to a document stored on a local machine or network
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SourceType/ElectronicDocument/Title
diagram
type xs:string

element SourceType/ElectronicDocument/DocumentAuthor
diagram
type xs:string
annotation
documentation
author name in format for reference citations e.g. Copp, C.J.T.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SourceType/ElectronicDocument/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
documentation
Date has a three part structure - two elements and an attribute
VagueDateBegin = First date of a range or date for a single date
VagueDateEnd = last date in a range
DateType attribute can be enumerated to allow for various date formats (e.g. dd/mm/yyyy or to allow a parser to interpret terms such as summer 69 or 1974 etc)
Note terms such as summer would be interpretted by standard begin and end dates.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: vaguedatestart, vaguedateend and vaguedatetype</ExistingStandards>

element SourceType/ElectronicDocument/FileName
diagram
type xs:string
annotation
documentation
The name of the file holding the document e.g. MyDoc.doc or Index.html
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SourceType/ElectronicDocument/URI
diagram
type xs:anyURI
annotation
documentation
Universal Resource Identifier - Path to electronic source of document either internal or external (e.g. web address)
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SourceType/ElectronicDocument/RefCatNumber
diagram
type RefCatNumberType
attributes
Name  Type  Use  Default  Fixed  Annotation
NumberType  xs:NMTOKEN
annotation
documentation
Documents and images may have various reference numbers associated with them e.g. ISBN, ISSN, internal filing numbers etc.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SourceType/SourceURL
diagram
type xs:string

complexType StratigraphyType
diagram
children ChronostratigraphicTerm BiostratigraphicTerm LithostratigraphicTerm AltText Comment
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Stratigraphy GeologicalRecord/Stratigraphy

element StratigraphyType/ChronostratigraphicTerm
diagram
children LookupTerm AltText Source Comment
attributes
Name  Type  Use  Default  Fixed  Annotation
ChronoStratID  xs:string
annotation
documentation
Chronostraigraphic dating term e.g. Jurassic Period
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element StratigraphyType/ChronostratigraphicTerm/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element StratigraphyType/ChronostratigraphicTerm/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element StratigraphyType/ChronostratigraphicTerm/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element StratigraphyType/ChronostratigraphicTerm/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element StratigraphyType/BiostratigraphicTerm
diagram
children LookupTerm AltText Source Comment
attributes
Name  Type  Use  Default  Fixed  Annotation
BiozoneID  xs:string
annotation
documentation
biostratigraphic zonation term e.g. Psiloceras planorbis zone
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element StratigraphyType/BiostratigraphicTerm/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element StratigraphyType/BiostratigraphicTerm/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element StratigraphyType/BiostratigraphicTerm/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element StratigraphyType/BiostratigraphicTerm/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element StratigraphyType/LithostratigraphicTerm
diagram
children LookupTerm AltText Source Comment
attributes
Name  Type  Use  Default  Fixed  Annotation
LithoStratID  xs:string
annotation
documentation
lithostratigraphic term describing geology e.g. Mercia Mudstone Group
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element StratigraphyType/LithostratigraphicTerm/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element StratigraphyType/LithostratigraphicTerm/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element StratigraphyType/LithostratigraphicTerm/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element StratigraphyType/LithostratigraphicTerm/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element StratigraphyType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element StratigraphyType/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

complexType SubstrateType
diagram
children SoilType SedimentType AltText
used by
elements FullDataSet/ComponentDataSet/UnitDataset/Substrate FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Substrate

element SubstrateType/SoilType
diagram
children LookupTerm AltText Source Comment
annotation
documentation
Allows recording of a soil type using either a code/short term, full classified name of a non-classified free term
Source can be a URL or ref. to the soil classification used.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: soil</ExistingStandards>

element SubstrateType/SoilType/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element SubstrateType/SoilType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element SubstrateType/SoilType/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element SubstrateType/SoilType/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SubstrateType/SedimentType
diagram
children LookupTerm AltText Source Comment
annotation
documentation
Allows recording of a sediment type using either a code/short term, full classified name of a non-classified free term
Source can be a URL or ref. to the sediment classification used.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SubstrateType/SedimentType/LookupTerm
diagram
type LookupTermType
children TermList LongTermName ShortTermName Language Definition ParentTerm SortPosition
attributes
Name  Type  Use  Default  Fixed  Annotation
TermType  xs:string
LookupTermID  xs:string
annotation
documentation
Typical structure for a simple lookup list of term contents - structure consists of an attribute for the type e.g. name of the look up list together with long and short versions of the term
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Term</ExistingStandards>

element SubstrateType/SedimentType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element SubstrateType/SedimentType/Source
diagram
type SourceType
children SourceID Reference Image ElectronicDocument SourceURL
attributes
Name  Type  Use  Default  Fixed  Annotation
SourceType  xs:string
annotation
documentation
Marker element for a link to a source module
for dealing with structured literature and document rexcords
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: Source</ExistingStandards>

element SubstrateType/SedimentType/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element SubstrateType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

complexType TaxonIdentifiedType
diagram
children AltText BotanicalName ZoologicalName BacteriologicalName
used by
elements FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/Synecology/TaxonIdentified IdentificationType/TaxonIdentified
attributes
Name  Type  Use  Default  Fixed  Annotation
CodeOfNomenclature  xs:NMTOKEN  required

element TaxonIdentifiedType/AltText
diagram
type AltText
annotation
documentation
Free text field for informal recording of field contents
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Sydney CODATA workshop</Comment>
</Created>

element TaxonIdentifiedType/BotanicalName
diagram
type BotanicalNameType
children HigherTaxon NameText NamedHybridFlag Genus FirstEpithet SpeciesQualifier SecondEpithet Rank NameAuthorCitation BasionymAuthorTeam CombinationAuthorTeam ExAuthorTeam VernacularNames CultivatedPlantNameElements MycologicalNameElements LichenNameElements NameComments
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>NBN: Taxon (Taxon dict. elements)</ExistingStandards>

element TaxonIdentifiedType/ZoologicalName
diagram
type ZoologicalNameType
children HigherTaxon NameText Genus FirstEpithet SecondEpithet Rank ZoologicalNameAuthorTeam ZoologicalNameYear VernacularNames NameComments
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>NBN: TaxonDict</ExistingStandards>

element TaxonIdentifiedType/BacteriologicalName
diagram
type BacteriologicalNameType
children HigherTaxon NameText NameComments
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>

complexType UnitDataSetRelationsType
diagram
children UnitRelationship Comment Date
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/UnitDataSetRelations FullDataSet/ComponentDataSet/UnitDataset/UnitDataSetRelations
attributes
Name  Type  Use  Default  Fixed  Annotation
EnteredBy  xs:string  required
EntryDate  xs:string  required
UnitID1  xs:string
UnitID2  xs:string

element UnitDataSetRelationsType/UnitRelationship
diagram
type xs:string

element UnitDataSetRelationsType/Comment
diagram
type xs:string
annotation
documentation
Free text of formatted text (rtf) description of the feature - not controlled length e.g. often a memo field
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>

element UnitDataSetRelationsType/Date
diagram
type DateType
children DateBegin DateEnd AltText
attributes
Name  Type  Use  Default  Fixed  Annotation
DateType  xs:string
annotation
documentation
Date has a three part structure - two elements and an attribute
VagueDateBegin = First date of a range or date for a single date
VagueDateEnd = last date in a range
DateType attribute can be enumerated to allow for various date formats (e.g. dd/mm/yyyy or to allow a parser to interpret terms such as summer 69 or 1974 etc)
Note terms such as summer would be interpretted by standard begin and end dates.
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>NBN: vaguedatestart, vaguedateend and vaguedatetype</ExistingStandards>

complexType ZoologicalNameType
diagram
children HigherTaxon NameText Genus FirstEpithet SecondEpithet Rank ZoologicalNameAuthorTeam ZoologicalNameYear VernacularNames NameComments
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/ZoologicalName TaxonIdentifiedType/ZoologicalName

element ZoologicalNameType/HigherTaxon
diagram
type HigherTaxonType
attributes
Name  Type  Use  Default  Fixed  Annotation
TaxonRank  xs:string
annotation
documentation
The scientific name of a taxon with a rank higher than Genus, which is commonly used to classify the group the unit belongs to.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1 </Comment>
</Created>
<Changed>
	<Author>Charles Copp</Author>
	<Date> Oct 2001</Date>
	<Comment/>
</Changed>
<ExistingStandards>HISPID3: covers "Suprafamilial Group Name" (supfam), Family Name (fam), and Suprageneric Group Name (supgen).</ExistingStandards>

element ZoologicalNameType/NameText
diagram
type AltText
annotation
documentation
Contains concatenated scientific name including cultivar designations.
Also contains hybrid formulas and formulas for graft chimaera or intergrades.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: fulnam  / ITF</ExistingStandards>

element ZoologicalNameType/Genus
diagram
type Genus
annotation
documentation
A validly published generic name under the ICBN, ICZN, ICBN, or a manuscript name,
or an intergeneric hybrid name, validly published under the ICBN, without the leading multiplication sign, eg. Halimiocistus for x Halimiocistus sahucii.
or the name of an intergeneric graft hybrid or graft chimaera, validly published under the Cultivated Code, eg. Crataegomespilus for + Crataegomespilus dardarii.
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: Genus Name (gen) as to content, not all rules. </ExistingStandards>

element ZoologicalNameType/FirstEpithet
diagram
type Epithet
annotation
documentation
first word in a taxonomic name combination other than a generic term or term indicative of rank
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>covers HISPID "Subgeneric Group Name" (subgen) but without the preceeding rank abbreviation (entered under Rank).
Also covers HISPID "Species Epithet" (sp)</ExistingStandards>

element ZoologicalNameType/SecondEpithet
diagram
type Epithet
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: "Infraspecific Epithet" (isp) without the hybrid stuff.</ExistingStandards>

element ZoologicalNameType/Rank
diagram
type Rank
annotation
appInfo
<Created>
	<Author/>
	<Date/>
	<Comment>Workshop 1</Comment>
</Created>
<ExistingStandards>HISPID: covers "Infraspecific Rank Flag" (isprk) as well as the rank ("group") of a "subgeneric group name" given in that field.</ExistingStandards>

element ZoologicalNameType/ZoologicalNameAuthorTeam
diagram
type xs:string

element ZoologicalNameType/ZoologicalNameYear
diagram
type xs:string

element ZoologicalNameType/VernacularNames
diagram
type VernacularNames
annotation
appInfo
<Created>
	<Author>WGB</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID: "Vernacular Names" (vernam)</ExistingStandards>

element ZoologicalNameType/NameComments
diagram
type xs:string
annotation
documentation
Any free text comments related to the name
appInfo
<Created>
	<Author>Charles Copp</Author>
	<Date>Oct 2001</Date>
	<Comment/>
</Created>
<ExistingStandards>HISPID4: namcom</ExistingStandards>

simpleType AltText
type xs:string
used by
elements AspectType/AltText TaxonIdentifiedType/AltText SubstrateType/AltText ContactType/AltText DateType/AltText IdentificationType/IdentificationEvent/Indentifier/AltText IdentificationType/IdentificationEvent/IdentificationReference/AltText IdentificationType/IdentificationEvent/IdentificationDate/AltText IdentificationType/IdentificationEvent/IdentificationFoundIn/AltText ImageType/ImageType/AltText ImageType/ImageBy/AltText ImageType/ImageInReference/AltText ImageType/ImageContent/AltText ImageColoursType/AltText ImageFormatType/AltText StratigraphyType/ChronostratigraphicTerm/AltText StratigraphyType/BiostratigraphicTerm/AltText StratigraphyType/LithostratigraphicTerm/AltText StratigraphyType/AltText SubstrateType/SoilType/AltText SubstrateType/SedimentType/AltText NamedCollectionType/AssociatedName/AltText FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionNumber/AltText FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType/AltText FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/NatureOrPreservationMode/AltText FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/TypeStatus/AltText FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/Type/Basionym/AltText FullDataSet/ComponentDataSet/UnitDataset/AbundanceOrDensity/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/AdditionalCollector/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringSite/NamedAreas/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Geomorphology/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Topography/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/PhysicalData/Hydrology/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/Biotope/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringEventData/EcologicalData/BiotopeRecord/BiotopeData/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Exposure/AltText FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/Slope/AltText GeologicalRecord/GeologicalData/AltText AddressType/AltText ZoologicalNameType/NameText BotanicalNameType/NameText BacteriologicalNameType/NameText AgentType/SupplierText FullDataSet/ComponentDataSet/UnitDataset/SupplierText
annotation
documentation
A free text representation of structured data under the same node (in contrast to comment etc.)

simpleType Epithet
type xs:string
used by
elements BotanicalNameType/FirstEpithet ZoologicalNameType/FirstEpithet BotanicalNameType/SecondEpithet ZoologicalNameType/SecondEpithet

simpleType Genus
type xs:string
used by
elements BotanicalNameType/Genus ZoologicalNameType/Genus

simpleType InstitutionCode
type xs:string
used by
elements AgentType/InstitutionCode OrganisationType/InstitutionCode

simpleType LongTermName
type xs:string
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType/LongTermName LookupTermType/LongTermName ReferenceType/Journal/LongTermName

simpleType OpenID
type xs:string
used by
elements NamedCollectionType/AccessionCatalogueID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/AccessionCatalogueID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/CollectionID NamedCollectionType/CollectionID NamedCollectionType/AssociatedName/NameID ImageType/ImageBy/NameID IdentificationType/IdentificationEvent/Indentifier/NameID ContactType/NameID FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/PerCollector/NameID FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/AdditionalCollector/NameID FullDataSet/ComponentDataSet/UnitDataset/GatheringEvent/GatheringAgent/FirstCollector/NameID ReferenceType/SourceID SourceType/SourceID FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/CultureCollection/UnitID FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/BotanicalGardenUnit/UnitID FullDataSet/ComponentDataSet/UnitDataset/UnitDomain/BotanicalUnit/UnitID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitHistory/UnitID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/Inscription/UnitID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitLabel/UnitID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/UnitID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/UnitID FullDataSet/ComponentDataSet/UnitDataset/UnitID
annotation
documentation
No controlled vocabulary. ID can be of any form to suit the needs of the user (existing IDs)

simpleType Rank
type xs:string
used by
elements BotanicalNameType/Rank ZoologicalNameType/Rank

simpleType Role
type xs:string
used by
elements ImageType/ImageBy/Role NamedCollectionType/AssociatedName/Role

simpleType ShortTermName
type xs:string
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenType/ShortTermName LookupTermType/ShortTermName ReferenceType/Journal/ShortTermName

simpleType SystemID
type xs:NCName
used by
elements FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/UnitStatusID FullDataSet/ComponentDataSet/UnitDataset/SpecimenUnit/SpecimenUnitStatus/SpecimenUnitStatusSrc/UnitStatusID
annotation
documentation
Controlled IDs used by the System only.

simpleType VernacularNames
type xs:string
used by
elements BotanicalNameType/VernacularNames ZoologicalNameType/VernacularNames


XML Schema documentation generated with XML Spy Schema Editor www.xmlspy.com
