Schema SchemaDoc.xsd


schema location:  C:\Documents and Settings\m.doering\My Documents\Codata\Schema Dokumentation\SchemaDoc.xsd
targetNamespace:  http://www.bgbm.org/SchemaDoc

Elements  Complex types
annotation  change

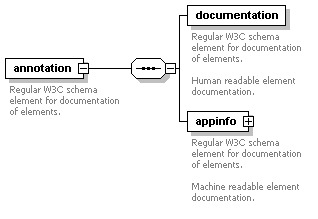

element annotation
diagram
children documentation appinfo
annotation
documentation
Regular W3C schema element for documentation of elements.

element annotation/documentation
diagram
annotation
documentation
Regular W3C schema element for documentation of elements.

Human readable element documentation.

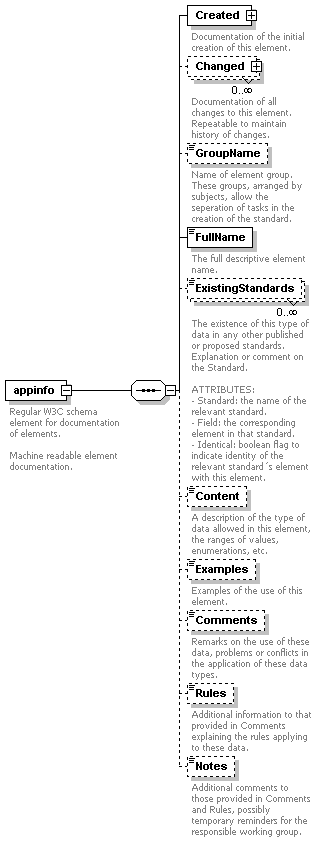

element annotation/appinfo
diagram
children Created Changed GroupName FullName ExistingStandards Content Examples Comments Rules Notes
annotation
documentation
Regular W3C schema element for documentation of elements.

Machine readable element documentation.

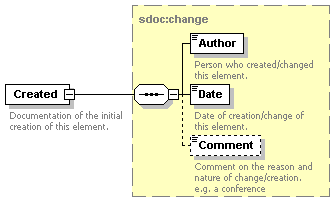

element annotation/appinfo/Created
diagram
type sdoc:change
children Author Date Comment
annotation
documentation
Documentation of the initial creation of this element.

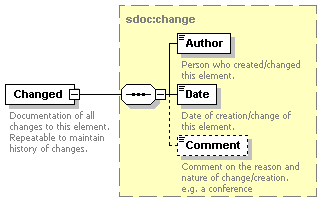

element annotation/appinfo/Changed
diagram
type sdoc:change
children Author Date Comment
annotation
documentation
Documentation of all changes to this element. Repeatable to maintain history of changes.

element annotation/appinfo/GroupName
diagram
type xs:string
annotation
documentation
Name of element group. These groups, arranged by subjects, allow the seperation of tasks in the creation of the standard.

element annotation/appinfo/FullName
diagram
type xs:string
annotation
documentation
The full descriptive element name.

element annotation/appinfo/ExistingStandards
diagram
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  Annotation
standard  xs:string  optional
field  xs:string  optional
identicalFlag  xs:boolean  optional
annotation
documentation
The existence of this type of data in any other published or proposed standards.
Explanation or comment on the Standard.

ATTRIBUTES:
- Standard: the name of the relevant standard.
- Field: the corresponding element in that standard.
- Identical: boolean flag to indicate identity of the relevant standard´s element with this element.

element annotation/appinfo/Content
diagram
type xs:string
annotation
documentation
A description of the type of data allowed in this element, the ranges of values, enumerations, etc.

element annotation/appinfo/Examples
diagram
type xs:string
annotation
documentation
Examples of the use of this element.

element annotation/appinfo/Comments
diagram
type xs:string
annotation
documentation
Remarks on the use of these data, problems or conflicts in the application of these data types.

element annotation/appinfo/Rules
diagram
type xs:string
annotation
documentation
Additional information to that provided in Comments explaining the rules applying to these data.

element annotation/appinfo/Notes
diagram
type xs:string
annotation
documentation
Additional comments to those provided in Comments and Rules, possibly temporary reminders for the responsible working group.

complexType change
diagram
children Author Date Comment
used by
elements annotation/appinfo/Changed annotation/appinfo/Created

element change/Author
diagram
type xs:string
annotation
documentation
Person who created/changed this element.

element change/Date
diagram
type xs:date
annotation
documentation
Date of creation/change of this element.

element change/Comment
diagram
type xs:string
annotation
documentation
Comment on the reason and nature of change/creation.  e.g. a conference
